STIHL MSA 120 C-B Battery Chainsaw

✔ Lightweight and Easy to Use

✔ Great for homeowners or landscapers who just need to do a quick amount of work

✔ 100 4-inch cuts on a single charge!

RUN TIME (w/ AK 10) Up to 15 minutes

RUN TIME (w/ AK 20) Up to 35 minutes

RUN TIME (w/ AK 30) Up to 55 minutes

Within the STIHL AK Series, the MSA 120 C-B is a great battery-powered chainsaw for suburban homeowners with various cutting needs. It is lightweight at only 8.4 lbs. (including battery, bar and chain) and features low vibration, quick chain adjustment and STIHL Quickstop® Plus chain braking feature. It also comes with the exclusive ¼” STIHL PICCO™ saw chain custom designed for use on STIHL battery-powered chainsaws. On four-inch diameter wood, make 100 cuts on a single charge. That’s enough power to tackle a tall stack of firewood. Stop by our store today and see the chainsaw in person, as well as the entire line of STIHL battery products.

The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on. Usage claim tested and verified by an independent third-party test laboratory. Run time may vary based on battery type, charge level and capacity, model, operating style and conditions.

Features

Caring for Nature

The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.

Lightweight Portability

Great for maneuverability and extended use.

STIHL Quickstop® Plus – an additional chain braking feature

STIHL offers an additional, manually-activated chain brake on some models. This system is designed to engage when the operator’s right hand completely releases the rear handle, stopping the chain within one second. Available on some models.

STIHL Quickstop®

STIHL chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.

Ematic™ Lubrication System

The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.

STIHL Electric Brushless Motor

Lightweight and compact, STIHL electric motors require minimal maintenance and feature low noise levels and reduced vibration.

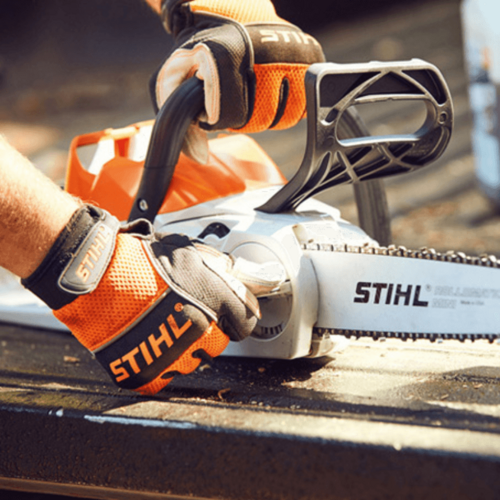

Quick Chain Adjuster (QCA) (B)

The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.

Rubberized Soft Touch Handle

Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.

Coast-down Brake

A controlled braking device (Q) to stop the rotating chain when the trigger is released.

MSA 120 C-B Specifications

GUIDE BAR LENGTHS (Recommended ranges) 25 to 35cm (10″ to 12″)

ROLLOMATIC® E

CHAIN OIL CAPACITY 109 cc (3.7 oz)

OILOMATIC® CHAIN 1/4″ STIHL PICCO™

POWER SOURCE Battery

RUN TIME (w/ AK 10) Up to 15 minutes

RUN TIME (w/ AK 20) Up to 35 minutes

RUN TIME (w/ AK 30) Up to 55 minutes

POWERHEAD WEIGHT (w/ Recommended Battery) w/ AK 20 3.7 kg (8.2 lbs.)

BATTERY SERIES AK Series

STIHL recommends #3670 (71 PM3 64) OILOMATIC® saw chain and 12″ 3005 008 3405 STIHL ROLLOMATIC® E guide bar combination. Chainsaw weights include recommended bar and chain combination. Batteries and chargers can be purchased separately or as a combined set with tool.
