STIHL MS 170 Gas Powered Chainsaw 16″ Bar 30.1 cc

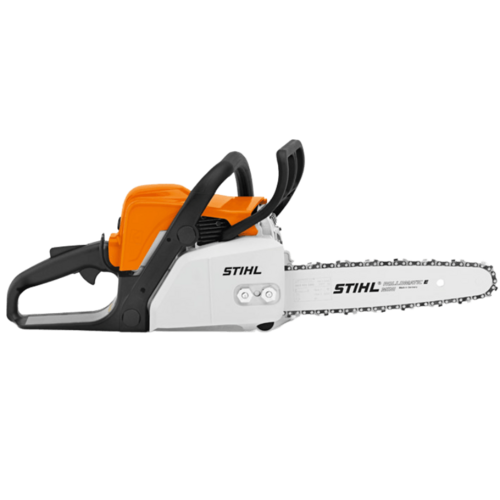

STIHL MS 170 Chainsaw

• • Benefits •
• • Description •
• • Specification •

• • Lightweight and easy-to-use entry-level Chainsaw

  • Great choice chainsaw for occasional use

  • Fuel Efficient engine

  • Versatile for a variety of cutting tasks, including pruning, trimming and felling small trees.

  • Made in America

• The MS 170’s affordability is one of its main advantages. This saw is an affordable choice for those on a tight budget due to its competitive pricing. The MS 170 is built to last and has a dependable, fuel-efficient engine that is made to withstand regular use despite its low price.

  With straightforward controls that make it simple to use, the MS 170 is also simple to start and run. It is an environmentally friendly choice for those who want to lessen their impact on the environment because it also has low emissions and noise levels. It also has a chain brake and an anti-vibration system, which adds to the user’s safety.

  The STIHL MS 170 is a robust and dependable chainsaw that provides excellent value for the money and is a great option for homeowners and beginning users.

  Anti-Vibration System

  STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.

  IntelliCarb™ Compensating Carburetor

  The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.

  Ematic™ Lubrication System

  The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.

• MS 170 Specifications

  DISPLACEMENT30.1 cc (1.8 cu. in.)

  ENGINE POWER 1.3 kW (1.7 bhp)

  POWERHEAD WEIGHT 3.9 kg (8.6 lbs.)

  FUEL CAPACITY 250 cc (8.5 oz.)

  CHAIN OIL CAPACITY 145 cc (4.9 oz.)

  OILOMATIC® CHAIN3/8″ PMM3

  GUIDE BAR LENGTHS (Recommended ranges) 30 to 40 cm (12″ to 16″)

  POWER SOURCE Gas

  STIHL recommends #3610 (61 PMM3 55) OILOMATIC® saw chain and 16″ 3005 008 3913 Ematic™ guide bar combination.
