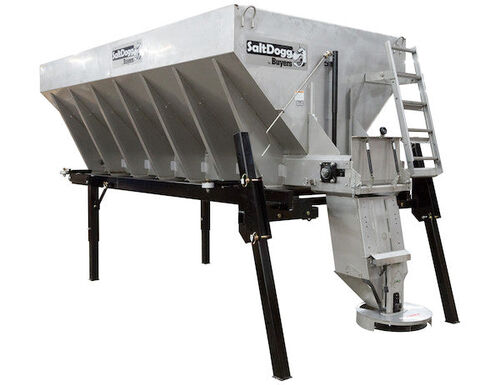

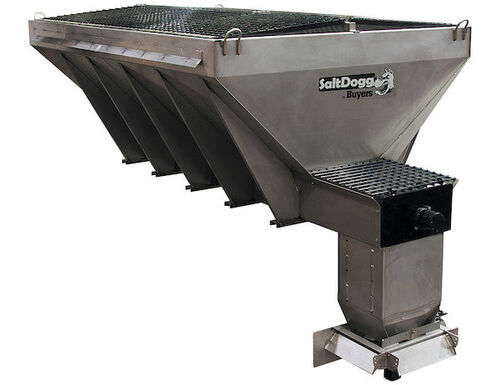

SALTDOGG® 2.5-5.5 CUBIC YARD HYDRAULIC CONVEYOR CHAIN SPREADER – 8FT

14708F462211 – SALTDOGG® 2.5-5.5 CUBIC YARD HYDRAULIC CONVEYOR CHAIN SPREADER – 8FT

• Designed for dump bodies and flatbeds with a 15,000 to 19,500 lb GVW (gross vehicle weight).
• Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 3.5 to 5 cubic yards.
• Hydraulic powered drive with two motors for conveyor and spinner operation.
• Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
• Hydraulic spreader controls sold separately with variety of options available.
• 18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
• Versatile 14-1/2 in. chain conveyor drive.
• Two chute baffles allow you to adjust the spread pattern to your use.
• High quality, 304 stainless steel construction for optimum corrosion resistance.
• Stainless steel inverted V reduces stress on the drive line and improves flow.
• Four hinged top screens with 1/4 in. bars included.
• Made in the USA

Buyers Products SaltDogg 2.5-5.5 Cubic Yard Hydraulic Conveyor Chain Spreader gives contractors and municipalities a heavy duty, durable spreader that is powered by a central hydraulic system (not included). The hoppers are designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight) chassis; depending on size of spreader. It works with bulk salt, bulk sand, or a 50/50 salt/sand mix.

The highly corrosion-resistant 304 stainless steel hopper features a fully-welded frame. It comes equipped with two hinged top screens with 1/4 in bars. The 14-1/2 in. wide, high-flow, steel pintle chain conveyor has 1/4 in. crossbars and a stainless steel floor. A stainless steel inverted V reduces stress on the drive line to improve material flow. An adjustable feedgate with lock pin offers additional material flow control.

The conveyor chain is driven by a hydraulic motor with a 20:1 worm gear box. The spinner is powered by a direct mount hydraulic motor. An 18 in. poly spinner casts material 2 ft to 30 ft. The spreader is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.

Hydraulic spreader controls are sold separately.

A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS.

• Capacity – 3.50 yd³
• Chute – Adjustable Height
• Chute Primary Material – 304 Stainless Steel
• Controller Type – Not Included
• Feed Mechanism – Conveyor Chain
• Feed Mechanism – 214 1/2 in. Pintle Chain with 1/4in. Bars
• Gearbox Ratio – 20;1
• Hopper Material – 304 Stainless Steel
• Number Of Motors – 2
• Overall Length – 116.00 “
• Overall Width (At Top) – 70.00 “
• Spinner Diameter – 18.00 “
• Spinner Material – Polyurethane
• Spreading Width Range – 2 To 40 ‘
• Top Screen – Yes
• Trough Material – 304 Stainless Steel
• Vibrator Included? – No
• Works With Bagged #1 Rock Salt – Yes
• Works With Bulk Salt – Yes
• Works With Bulk Sand – Yes
• Works With Salt / Sand Mix – Yes
• Drive Type – Hydraulic
• Hopper Length (In.) – 96.00 “
• Hopper Width (In.) – 70.00 “
• Overall Height (In.) – 46.00 “
