PTO Post hole borer Large (No Auger)

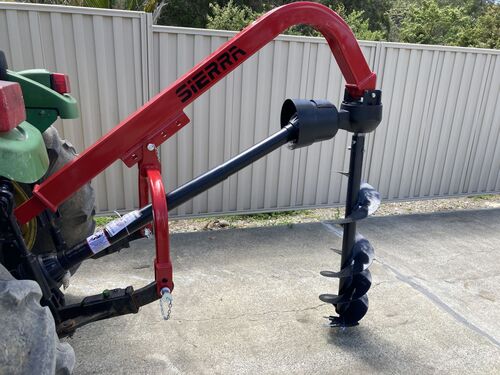

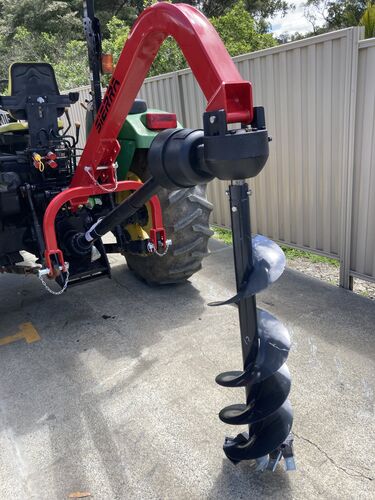

Sierra PTO Post hole borer (No Auger)

Overview

Got Post holes to dig? trees to plant? A Sierra Post PTO hole borer and your tractor will make those big jobs that much easier. It is designed to meet the applications of landscapers, lifestyle block owners, nurseries, and farmers

Features & Benefits

-Shearbolt-protected 50 HP gearbox, with 2″ output shaft gives you the wider choice of many auger manufacturers who use this almost industry standard 50mm size.

-Reinforced 100mm square steel tube boom.

-With Cat 1 and Cat 2 lower Linkage holes, this machine will fit 18-100HP tractors.

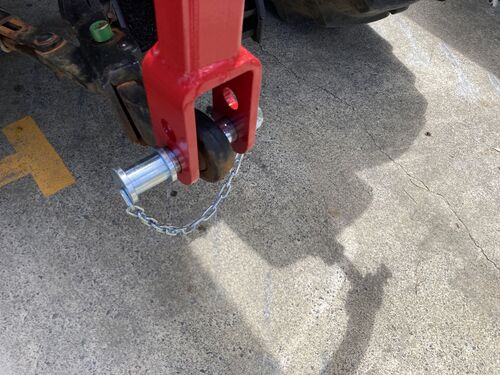

-Requires a CAT 1 (19mm) top link pin to mount on the tractor.

-It comes with Category 2 lower pins supplied.

 -This model is suited to tractors 30Hp + due to its weight and strength, check out our Compact tractor version for smaller tractors!

-Sierra Post hole augers have replaceable hard steel cutting tips, the most common replaceable tips available.

-A PTO shaft with a shear bolt yoke is included. When digging holes you know your tractor drive line is protected if you hit an unexpected obstacle.

Specifications



Specifications	Units
Length	1930mm
Width	850mm
Height	370mm
Weight	130kg
Linkage	CAT 1 (19mm) top link:CAT 1 and CAT 2 lower linkage holes
Tractor	18-100HP but more suited to 35HP+
Frame size	100mm x100mm
Materials	reinforced steel frame, replaceable hard steel cutting tips
PTO	Series 4 with shear bolt yoke

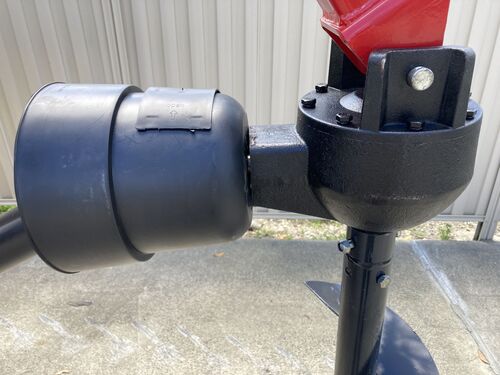

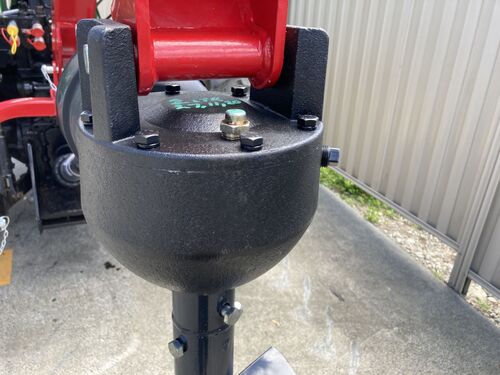

Gearbox	50HP with 2″ output shaft



Notes

Shipped flat packed assembly required

12-month warranty
