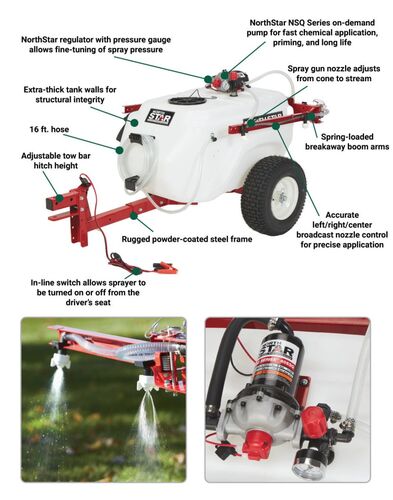

The 12V NorthStar tow-behind trailer boom broadcast and spot sprayer has a high-flow NorthStar NSQ Series pump that lets you put down chemicals fast and easily.
Features and Benefits
- 41-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
- Delivers up to 4.0 GPM open flow and 60 PSI max. for quick spraying times
- 8.3-ft. broadcast pattern
- Provides the power you need to reach a vertical spray height of up to 21 ft. max., and a horizontal spray distance of up to 32 ft. max.
- NorthStar NSQ Series pump is built with a Santoprene diaphragm and patented DXS-3 Viton valves for performance, chemical compatibility, and durability
- Pump automatically turns off when no flow is required to conserve battery power
- Oversized electric motor is rated for 100% continuous duty to eliminate downtime
- Steel boom has built-in valves with left, right, or center flow control
- Built-in regulator with pressure gauge allows you to finely tune spray pressure
- Steel cart with 16in. pneumatic tires make easy work of towing over rough terrain
- Spring-loaded breakaway boom arms deflect when struck, and fold against the sides of the tank for compact storage
- Deluxe trigger spray gun has an adjustable stream-to-cone brass nozzle and 16-ft. hose
- Adjustable height tow bar hitch fits a wide range of tow vehicles (ball coupler not included)
- Large 7 1/2-in. dia. tank lid for easy filling
- Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
- Bottom-mount tank drain makes rinsing the tank quick and easy
- Sump is built into the bottom of the tank for complete fluid draining
- 8-ft.L wire harness with battery clamps for easy battery connections/disconnections
- Bypass flow returns to the tank to keep chemicals mixed well
- 12V DC power
Product Specifications
Equipment Type | Sprayer (Tow-behind) |
Equipment Type | Sprayer (Broadcast Spot) |
Broadcast Width | 8.3 Ft. |
Dry Weight | 132 Lbs |
Flow | 4.0 Gpm |
Hose | 16 Ft. |
Mounting | Tow-behind |
Power Supply | 12v |
Pressure | 60 Psi |
SKU | 282585.NOR |
Spray Distance | 21 Ft. High, 32 Ft. Long |
Spray Gun | Spot, Broadcast |
Spray Pattern | Cone/Stream |
Tank | 41 Gal |
Tires | 16 In. Pneumatic |
