Nilfisk MH 7P 180/1260 FA 3 Phase Electrical Large Hot Water Pressure Washer

Factsheet HERE  Partslist HERE

The MH 7P 180/1260 FA Gives heavy duty, efficient hot water cleaning for intense use.

The Tornado Plus double pipe lance has pressure regulation on the lance, and a separate low pressure nozzle for optimal rinsing, which enables using low pressure detergent.

QuickService concept give low running and maintenance costs, robustness, durability and high cleaning efficiency. Service indicator and diagnostics system

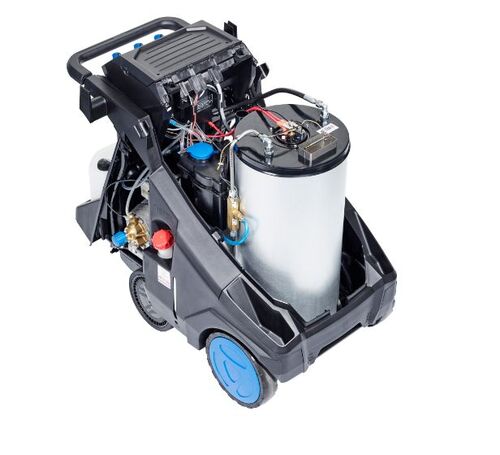

Heating costs are reduced with the award winning diesel powered EcoPower boiler with stainless steel boiler coil ( > 92% efficiency) for reduced fuel costs and 11.5kW power for optimal water heating.

Safety features include Includes BA Valve back-flow preventor, and machine protection against low fuel and low pump oil. Also flame sensor and exhaust gas temperature sensor.

Automatic start/stop and delayed action.

Sound level is reduced thanks to the 1450RPM motor.

Flow-activated control system for operator comfort.

Easy to use control panel: all controls in one place.

2 way chemical dosing system with automatic flush system.

Eligible for Nilfisk’s 3 year Warranty (conditions apply)

Specifications:

• Power Consumption at 415 Volt 8.3 kWatt Current 15.8 Amperes 5 meter cord.
• 1450 RPM long life C3 pump with 4 ceramic pistons and brass cylinder head.
• 2540 PSI 175 Bar Cleaning Impact 6.3 kg/Force
• Water Flow 21 Lit/min QMAX 19.5 Lit/min QIEC
• Max water inlet temp 40C
• Max Water Temp 90C Max Steam Temp 150C
• 35 litre fuel tank and fuel consumption 5.3 Lit/Hr.
• Detergent Tank Capacity; 15 litre and 10 litre
• 10m DN10 2 wire 3/8″ HP hose Ergo 2000 gun with Universal Plus 1120 lance and 0680 Tornado Plus nozzle with Grey indicator ring
• Dimensions; 119cm Long x 70cm Wide x 102cm High  Mass: 224kg

OPERATING INSTRUCTIONS

1. Don’t use turbo lance above 80 degrees (Opposite the off position on the main switch).

1. Don’t use a surface cleaner above 60 degrees

1. Check the fuel level before use.

1. Check the detergent container is full, and the dial turned off.

1. Pre-select the desired temperature.

1. If the steam is to be used, set the temperature to maximum and back off the steam dial which is found next to the pressure guage two turns anti-clockwise.

1. Then switch on the unit.

IMPORTANT

WHEN HOT WATER / STEAM HAS BEEN USED AND UNIT IS NOT BEING USED FOR AT LEAST 10 MINUTES, TURN THE TEMPERATURE DIALS DOWN AND FLUSH UNIT THROUGH WITH COLD WATER UNTIL THE LANCE IS COLD.

Hot water units should only be used for a maximum of 2 hour at a time before resting for at least one hour, with power and water supplies turned off.
