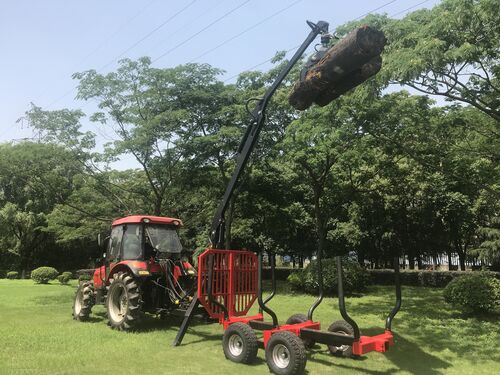

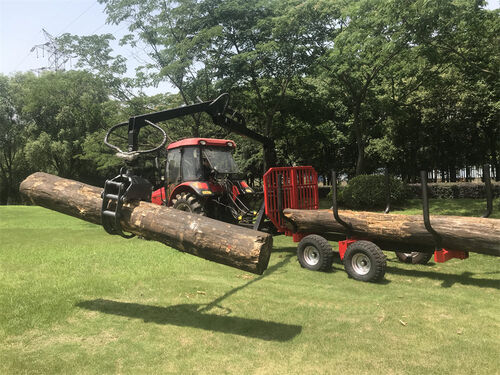

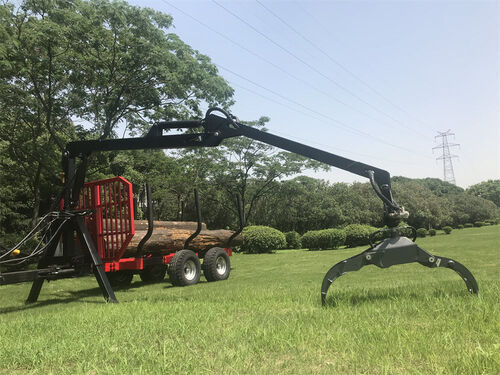

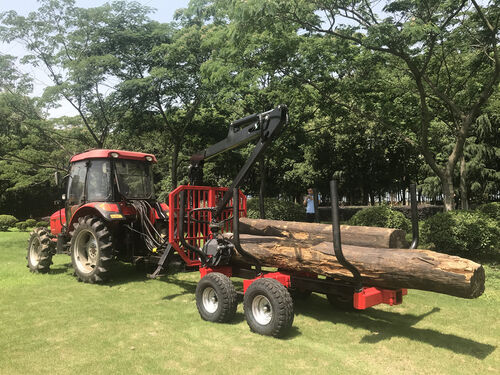

NEW Tractor PTO Drive 15.5′ Ft Forest Log Crane w/ 13K Capacity Logging Timber Wood Trailer

*** IN STOCK. AVAILABLE FOR IMMEDIATE PICKUP IN SAN MARCOS, CA WAREHOUSE @ $10,995 INCLUDING THE 15.5′ CRANE + HEAVY DUTY LOGGING TRAILER 13,200+ LB CAPACITY.

NEW Tractor PTO Drive 15.5′ Ft Forest Log Crane w/ 13K Capacity Logging Timber Wood Trailer

*** LOCAL PICKUP ONLY IN SAN MARCOS, CA.  IF SHIPPING IS NEEDED, PLEASE REACH OUT TO US TO SEE IF THERE ARE ANY DELIVERY OPTIONS.

Model: WPRT06
Max Outreach: 15.42′ Ft
Lifting Moment, gross: 28 KNm
Lifting capacity at 13′ (excl. grapple and rotator): 880lb
Lifting capacity at full reach (excl. grapple and rotator): 660lb
Valve Block: 5/7
Slewing torque: 7 KNm
Rotator: 3 Ton
Grapple: 0.18 m2
Slewing angle: 360°
Slewing cylinders: 4 PCS
Working pressure: 175 BAR
Crane’s weight (without outriggers and valve block): 770lb
3-Point Linkage: Cat-1&2
A type outriggers weight: 374lb
B type outriggers weight: 462lb
Load capacity up to 40 km/h: 13,228lb
Length of loading area: 129.5″
Total length: 210″
Total width with standard wheels: 78″
Standard wheels 10.0/80-12
Height of the front gate: 51.2″
Center distance between the tires: 38.2″
Cargo Width at the top wagon: 67″
Cargo Width at the bottom trailer: 43.25″
Weight: 1675lb
