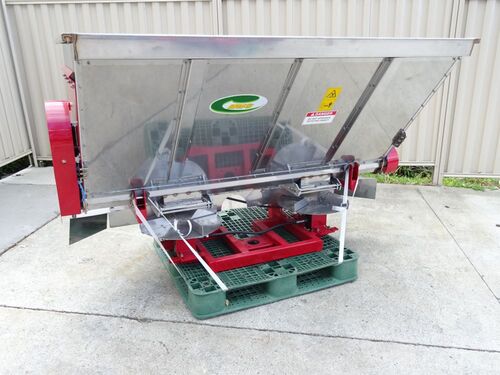

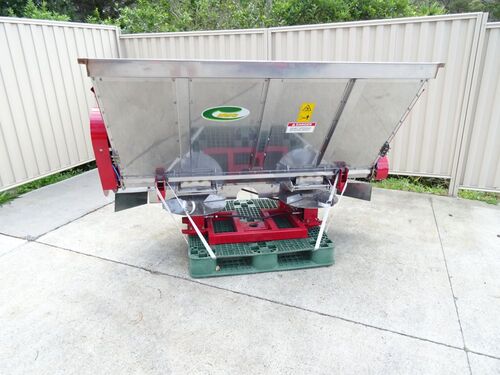

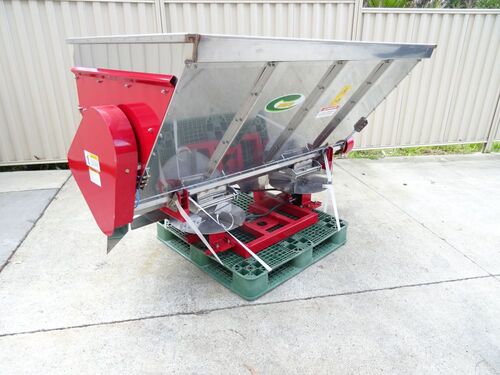

Multi Spreader Twin disc 1300L Hydraulic drive

Multi Spreader 1300L (twin disc, Hydraulic drive)

OVERVIEW:

Iris Multi Spreader 1300L (IODD-1300A)

This one machine will spread it all! It is the best solution for spreading lime, granular fertilisers, as well as organic environmentally friendly compost or manure, sand and  woodchip etc. The patented double shutter system handles the smaller granulated materials and can be adjusted manually to distribute larger materials (8-24m spread)

FEATURES AND BENEFITS:

-Spinner and shutter system:

-The twin stainless steel spinners are hydraulically driven and give the most uniform results.

-Spinner speed controls the spreading width.

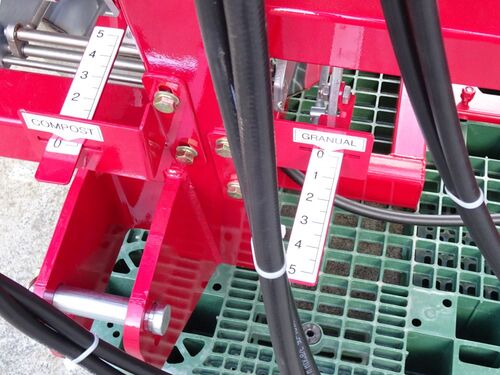

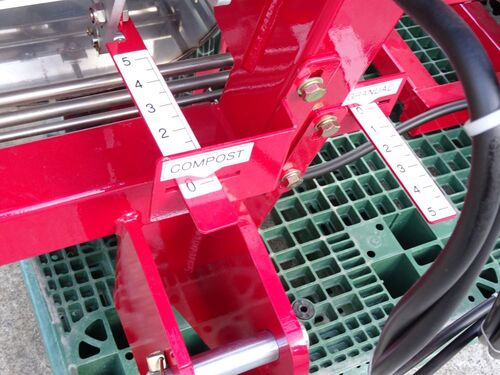

-The shutter system is also hydraulically controlled.

-Shutter 1 works for controlling manure and larger materials

-Shutter 2 has butterfly openings to control granular-type fertilisers and lime.

-Auger and agitator system:

-The auger pulls the materials into the hopper. The agitator stops the bridging of material to ensure smooth flow.

-A hydraulic motor drives both and have variable speed adjustment to control the feed rate.

-Optional side dressing attachments are shown in some of the photos



Specifications	Units
Width	2300mm
Length	1380mm
Height (including cover)	1360mm
Capacity	1300 Litres
Weight	450kg (empty)
Spreading diameter	8-24m 180
Attachment	3 Point Link
Spinner and shutter system (stainless steel)	Hydraulic
Auger and agitator	Hydraulic
Hopper material	Stainless

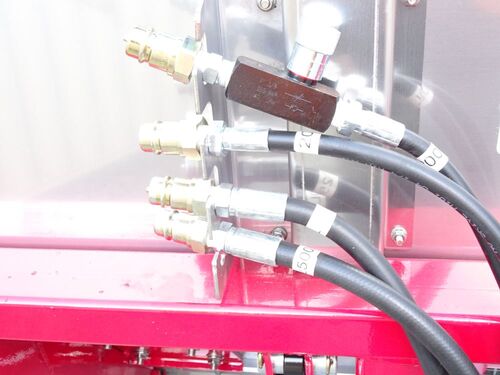

Number of Hydraulic Services Required	2-3
