Multi Spreader IOD-600-J 780L with Side Dresser

 Multi Spreader IOD-600-J 780L with Side Dresser

OVERVIEW

Iris Multi-Spreader IOD-600-J  780L (PTO) will spread lime, fertiliser and compost with side dressing attachment for shooting the material under orchard rows etc. It is the perfect all round solution for spreading lime and silicates, as well as organic enviromentally friendly composts and manures. .The patented double shutter system handles all types of manure, organic compost  (3-6 metre spread)  to granular fertilisers and lime  (8-16 metre spread).

FEATURES AND BENEFITS:

-Single Spinner & Shutter System:

-Spinner is PTO Driven

-Spinner speed controls the spreading width

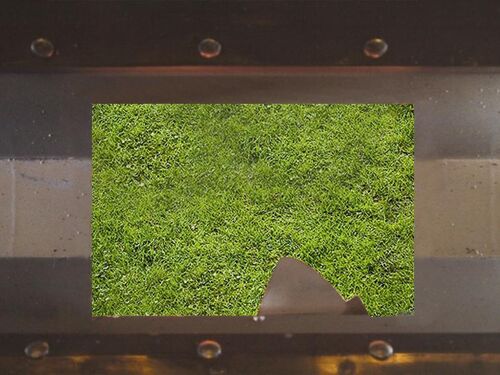

-Shutter One works for manure

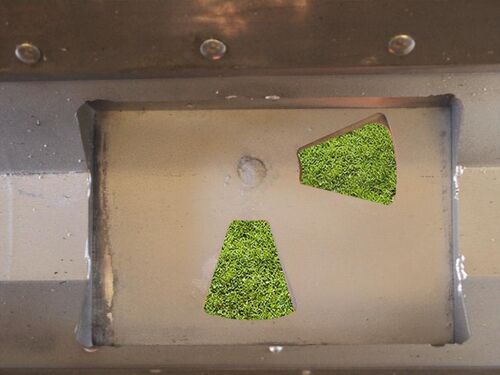

-Shutter Two has butterfly openings to control granular type fertilizers and lime

-These are mechanically controlled.

-Auger & Agitator:

-Auger drive pulls material into ethe hopper outlet.

-The agitator stops bridging of material.

-Both the Auger and Agitator are driven by hydraulic motor

-The distribution of materials is a disc type spread of 3-10 m width, larger materials, and 8-16m smaller, granulated materials

-A single Stainless Steel disc provides full width 180º spreading.

-Side discharge option fitted for shooting the material under orchard rows etc .

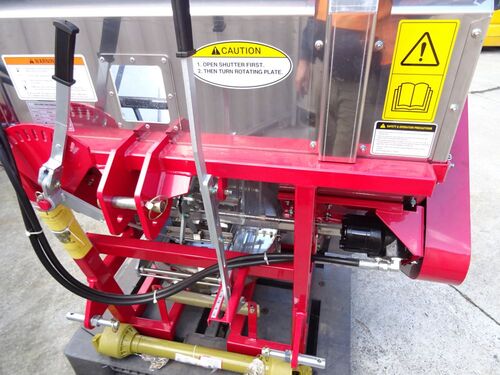

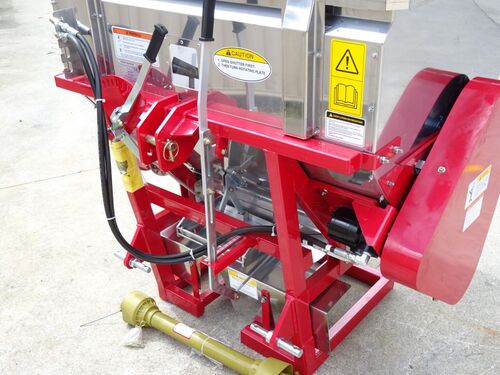

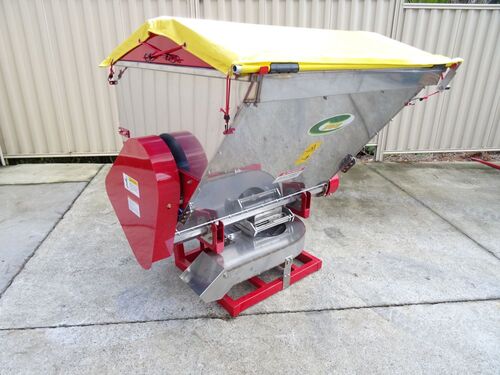

Also PVC Hopper Cover option available (shown in photos)







Specifications	Units
Width	1500mm
Length	1320mm
Height	1330mm
Capacity	780 Litres (0.78m3)
Weight	240kg
Spreading diameter	organic (manure, compost) 3-6 m
(adjustable)	granular( fertilisers and lime) 8-16m
Attachment	3 Point Linkage
Spinner and shutter system	PTO driven
Auger and aggitator	Hydraulic Driven
Hopper material	Stainless steel
