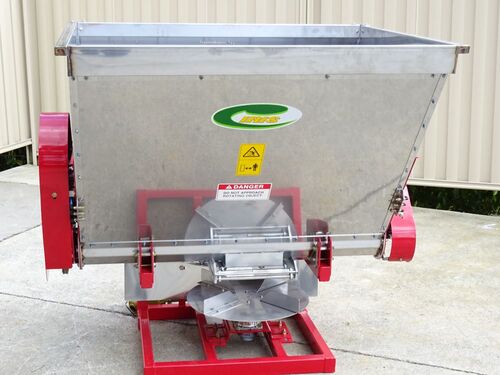

Multi Spreader IOD-600-J 780L PTO

Iris Multi Spreader 780L PTO

Overview

The Iris Multi-Spreader Model IOD-600-J 780L PTO, is the perfect all round solution for spreading lime,organic composts and manures as well as traditional granular fertilisers. The patented double shutter system handles all types of manure, from organic compost (3-6 metre spread) to granular fertilisers (8-16 metre spread).

Features & Benefits

– Single Spinner is PTO Driven

– Spinner speed controls the spreading width

– Shutter One works for manure

– Shutter Two has butterfly openings to control granular-type fertilizers and lime

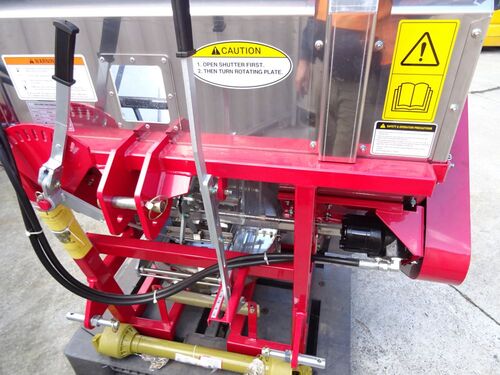

 These are mechanically controlled by a lever on the spreader

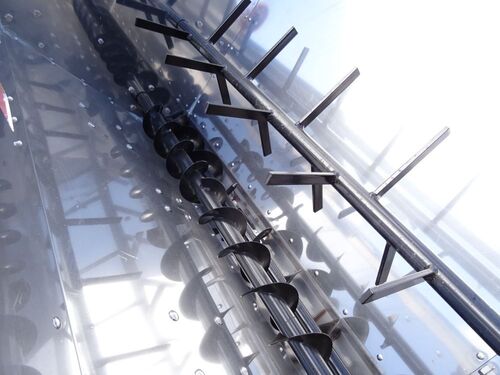

– Auger & Agitator:
 Hydraulic-driven Auger pulls material into the hopper outlet.
 The agitator stops bridging of material this is driven at the same time as the feed augers and the speed is adjustable by the hydraulic flow controller.

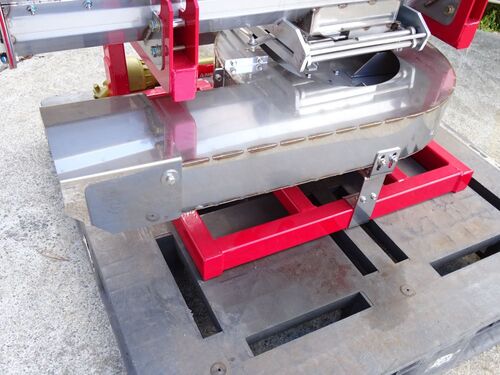

– A single Stainless Steel disc provides full width 180º spreading, obtaining a spread of 3-10 m width with larger materials, and 8-16m smaller, granulated materials

-Side dressing attachment option is  available for shooting the material under orchard rows etc

Also PVC Hopper Cover option is available for orchard situations to prevent fruit or foliage from entering the hopper.



Specifications

Specifications	Units
Width	1500mm
Length	1320mm
Height	1330mm
Capacity	780 Litres (0.78m3)
Weight	240kg
Spreading diameter (manure and compost)	3-6 m
Spreading diameter (granular fertilisers and lime)	8-16m
Attachment	3 Point Linkage
Spinner and shutter system	PTO driven
Auger and agitator	Hydraulic Driven
Hopper material	Stainless steel
