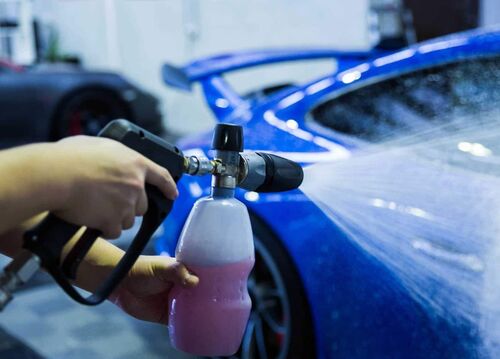

MTM Hydro Magnum28 DS Spec Foam Cannon Kit + BAR Short Trigger Gun (360 swivel)

Combing MTM Hydro’s Italian-made PF22 foam cannon and the robust BAR ST-2300 short trigger spray gun with integrated stainless swivel which is made in Germany gives you an complete premium Foam Kit that rivals the standard MTM Magnum28 Foam Kit but at a fraction of the price.

Simply attach the foam cannon to your pressure washer using one of the included fittings, fill with your desired ratio of chemical and you are up and running. The snub style Magnum28 Kit allows you to fit in tight spaces when cleaning and eliminates reaching 40″” away to adjust your cannon settings.

The MTM Hydro PF22 launched in 2017 as the latest and greatest foam cannon to hit the world stage. The PF22 offers both, adjustable fan blades, and a two-stage nozzle allowing you to spray vertically and horizontally.

By adjusting the fan blades (narrow or jet) MTM Hydro Foam cannons throw thick foam onto your vehicle, pole barn siding, house, fence, sidewalk, roof, or other washable items. The chemical injection knob on top of the PF22 also clicks and allows for precise measurement of more or less chemical to be drawn through the internal chamber, increasing or decreasing the foam output.

This allows the internal agitator to create a dense foam that is stickier than the Chinese knock off foam cannons. In doing so, this thick foam has a longer dwell time which allows the chemical to work on the cleaning surface for longer in its effort to emulsify the dirt and grime. some surfaces may still require some elbow grease, however, if the chemical does its job, very little (if any) scrubbing is required.

Included items:

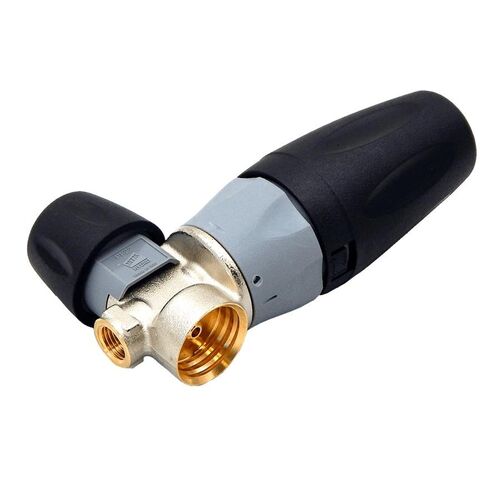

• Italian Brass Foam Cannon body
• Italian Calibrated 32 oz Grey PF22 Stand Up Bottle

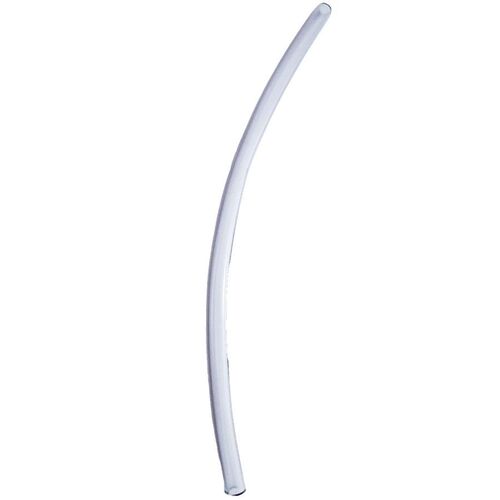

• 1/4″ x 9″ tube/straw for drawing chemical
• BAR ST-2300 Spray Gun with Integrated Stainless Live Swivel
• 1/4″ Male Stainless Coupler – Gun Outlet

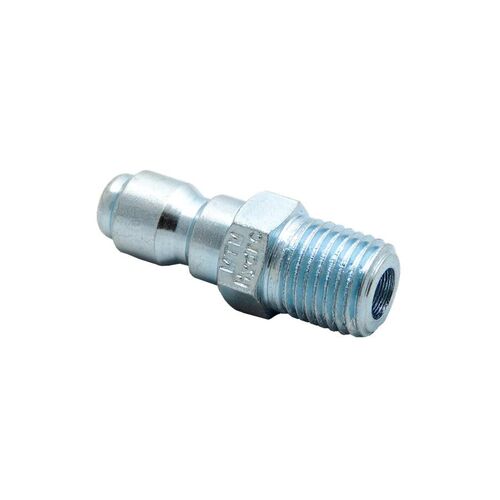

• 1/4″ QC Stainless Steel Plug – Cannon Inlet
• 3/8″ QC Stainless Steel Plug – Gun inlet (Option 1)
• Teflon Tape for installation – 6 Wraps per fitting

Specifications:

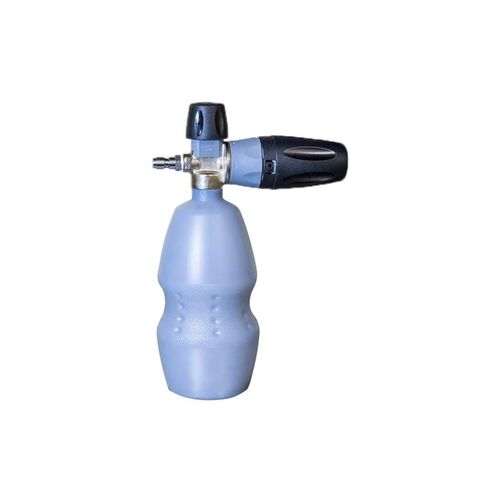

MTM PF22 Foam Cannon Valued $139.90

• Min. 1,100 PSI – Max. 5,000 PSI
• Min. 1.4 GPM – Max. 5.3 GPM
• Max. 140°F
• 1/4″ QC Plug

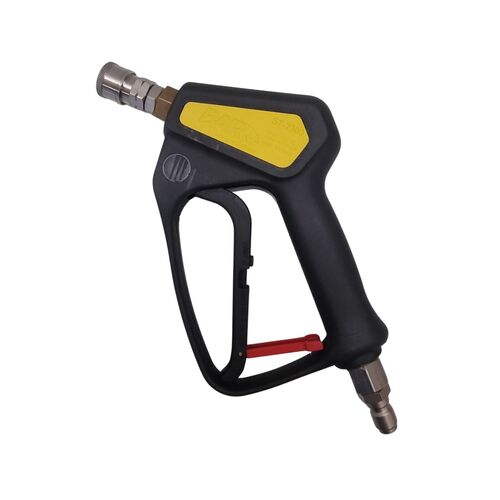

BAR ST-2300 Short Trigger Gun with QC adapters – Valued $124.90

• Max – 4,500 PSI
• Max – 45 LPM
• Max – 150° C
• Full swivel functionality
• Inlet – 3/8″ BSP F
• Outlet – 1/4″ BSP F
• Nickel Plated 3/8″ M nipple to 3/8″ QC plug
• Stainless 1/4″ BSP M to 1/4″ QC coupling

Note:

Connection to a M22 water hose

The short trigger gun comes standard with a 3/8″ QC plug exit. To integrate this kit with a M22 female hose connector which is standard across most pressure washers such as ones from Kranzle; you will need to purchase this adaptor which is a 3/8″ QC coupling to M22 male thread adapter to suit.

PF22 Foam Cannon

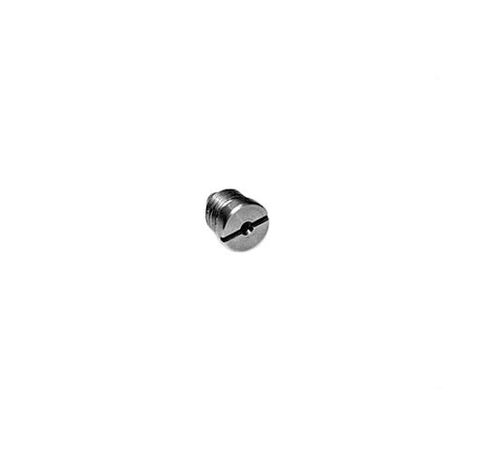

The full spectrum of ratings is not supported by the 3.5 or 3.0 orifices included with this kit. Other orifices may be required for higher flow machines that have lower PSI- For example, 2000 PSI with 3.5 GPM requires a 5.0 Orifice. For larger orifices, you will know it does not work because you will experience starting and stopping of the foam cannon as your unloader slips in and out of the bypass. You will also get watery foam as the orifice size 3.5 is significantly smaller than the 5.0 needed for your machine. MTM Foam Cannons will not work with flow sensing unloaders as you will experience the same results listed for an under-sized orifice. See below for additional orifice sizes and replacement items available for purchase.
