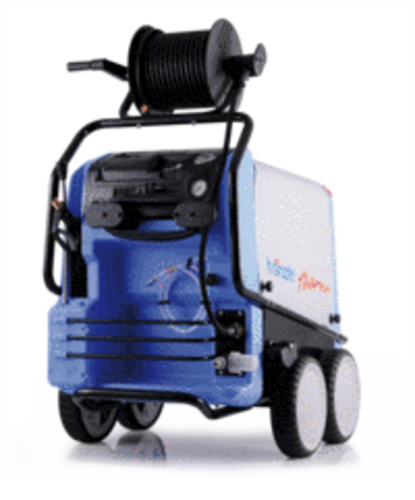

Kranzle Therm 635-1 with 20M Reel
Original price was: $5,970.00.$169.99Current price is: $169.99.
Kranzle Therm 635-1 with 20M ReelPallet DeliveryProduct is delivered on a pallet The big hot water series Kranzle-therm-1 is distinguished by the high working pressures of over 200 bar and superb water flow, providing outstanding results!These models are yet another independent Test award winner with such detail to high quality design…
Kranzle Therm 635-1 with 20M Reel
Pallet Delivery
Product is delivered on a pallet
The big hot water series Kranzle-therm-1 is distinguished by the high working pressures of over 200 bar and superb water flow, providing outstanding results!
These models are yet another independent Test award winner with such detail to high quality design and practical solutions, the all-terrain trolley and technically complete equipment leaves no wishes unfulfilled when it comes to performance and handling.
Big Therms main benefits, or features include:
- Digital temperature display
- Digital temperature control accurate to +/- 1°C
- Digital display offers pump/burner running time, helping plan any servicing
- 4-way safety system with over-load protection
- 20-30 second delayed Total-Stop, helping reduce unnecessary start/stopping of the machine
- Additional electrical over-current protection
- Digital flame sensor, cutting off fuel supply when there is no flame
- Safety thermostat, triggers when emission temperatures exceed 230°C
- Low level fuel cut out
Kranzle therm 635-1
Product characteristics:
- Large over-dimensioned gears and oil housings
- Integrated water tank
- High-pressure chemical valve
- Roto-Mold trolley takes rough ground in its stride
- Neat arrangement system
- Shock absorbing buffers
- Parking brake

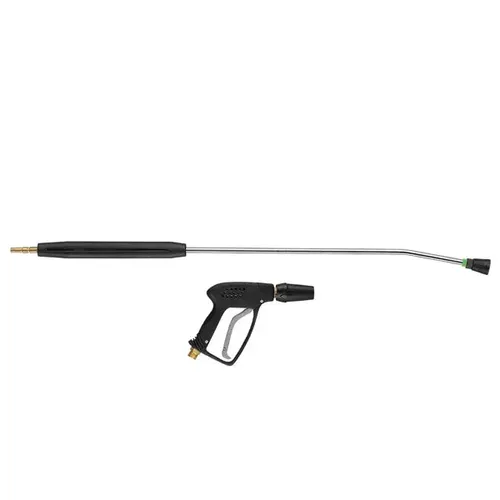

- Trigger gun with safety catch Starlet
- Hose-reel version with 20 M hose
- Stainless steel lance with spray nozzle
- Turbokiller lance, optionally
- 5 m power lead with UK 3-pin plug with cable reel
- Quiet and durable electric induction motor (1,400 rpm)
- Advanced water inlet suction / priming design
- Steam stage temperatures up to 140°C
- Safety prevention devices as standard
- Delayed Total-Stop motor version
Technical Data:
Operating pressure adjustable bar / MPa: 30-130 / 3-13
Max. admissible overpressure bar / MPa: 145 / 14.5
Connected load, V / ~ / Hz / A: 230 / 1 / 50 / 15
Motor speed Rpm: 1400
Water output l/min & l/h: 10.6 / 635
Power intake / Power output kW: 3.4 / 2.3
Volume water tank l: 4
Hot water output adjustable °C: 12-89
Steam level °C: 145
Heating output kW: 55
Fuel tank (l): 35
Power supply cable, m: 5
Dimensions (L x W x H) mm: 1050 x 800 x 1015
Weight (kg): 212
Equipment:
Steel braided high-pressure hose (m) 20
Trigger gun with safety catch (model) Starlet
Stainless steel lance with flat jet nozzle (nozzle size) D25045
