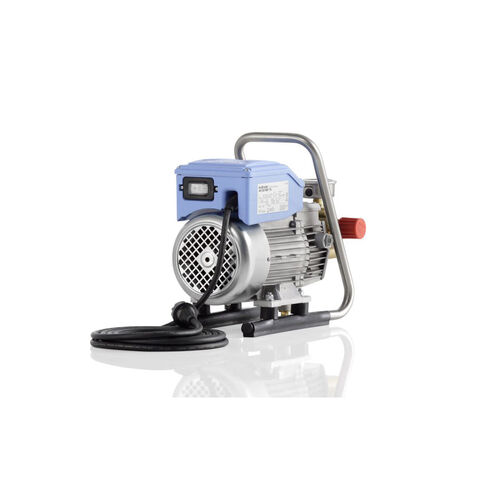

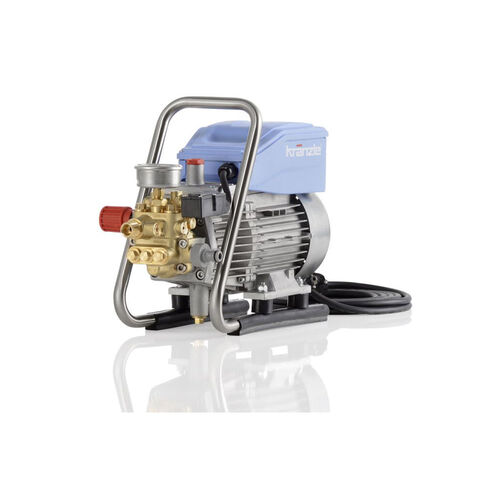

Kranzle KHD7/122TS Pressure Washer with BAR Short Trigger Gun, Snow Foam Cannon & Foamstar Shampoo Bundle

Good things really do come in small packages! It couldn’t be truer, good things really do come in small packages! A single phase pressure cleaner, ideal for farmers, vehicle washing, path cleaning and more. Has a slow running, quiet 1400rpm motor pump for long life. Plus this package comes complete with gun, hose and ‘Dirtkiller’ nozzle, to minimise your cleaning time. Complete with a 2-year warranty, plus a 10-year warranty on the brass pump head – you can’t go wrong!

Click to view Datasheet and User Manual

Note: KHD10/122TS model which outputs 10LPM is also available here.

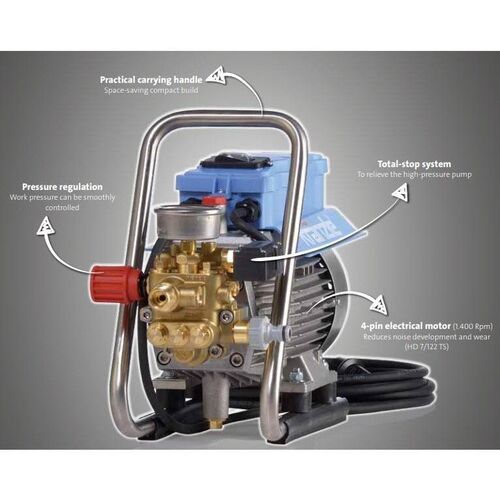

Features

• Single phase
• 10 amp plug
• Total Stop
• Stainless steel flat fan jet lance
• 5m power lead
• Spray gun with safety cut-out
• 10m steel fabric high pressure hose
• Continuously adjustable pressure control
• Brass pump head
• Ceramic coated pump pistons
• Dry-run safety
• Leakage return system
• Two year industrial warranty
• 10 year pump head warranty

Specifications:

• 120 bar, 1740 psi
• 7L/min
• 240V, 7.5A
• Dirtkiller Lance

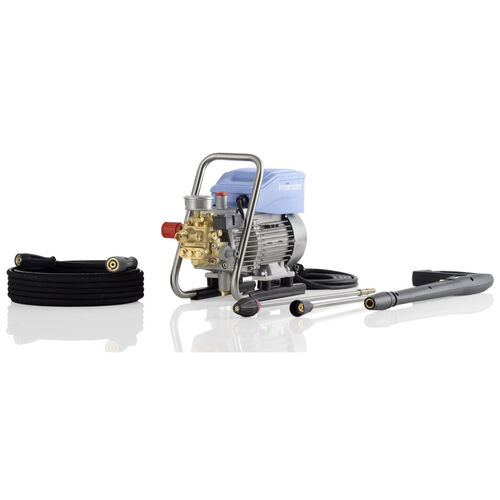

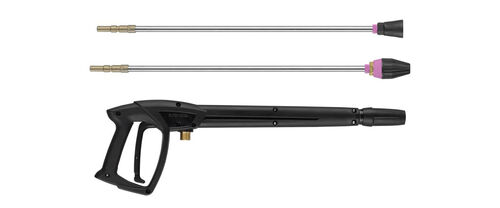

Equipment:

• 10m HP Hose
• Trigger Gun
• S/S Lance with
• Fan Jet Nozzle 028
• S/S Lance with
• Dirtkiller Nozzle 028

Recommended oil change after 200 hours of use. Recommended oil specifications = Castrol RX Super 15W-40 CJ-4/E9 or Valvoline Super Diesel 15W-40





We have put together an economical yet quality package which combines the most popular BAR short trigger gun rated up to 5000psi suitable for a wide range of high pressure washers that comes together with a 40 degree spray nozzle and the BAR Italian made foam cannon.

1) Short Trigger Gun

A high quality short gun that adapts to any pressure washer with the right fitting for added convenience of reaching tighter spots like underneath chassis or even the engine bay compartments.

This assembly comes complete with quality quick connect components that is even stronger and comes with a swivel connector at the water inlet for ease of manoeuvrability. All connections have been fitted with thread seal tape to prevent leaks and is ready for plug & play.

Manufactured in Germany

Connections:

Inlet: 3/8″ Quick Connect Plug (with built-in 360 deg swivel)

Outlet: 1/4″ Quick Connect Coupling

Specifications:	Short Trigger Gun (Standalone)
Inlet:	3/8″ Bsp Female
Outlet:	1/4″ Bsp Female
Flow:	45 l/min.
Pressure:	5000 Psi (max. 5000 Psi)
Temp:	150°C



** The short trigger gun comes standard with a 3/8″ QC plug exit. To integrate the Mosmatic accessories with the Kranzle pressure washer, we have included a 3/8″ QC coupling to M22 male adaptor to suit.

2) CleanSkin 1/4″ Quick Connect Spray Nozzle Tips (5 pieces)

1/4″ inch Universal Quick Connection Spray Nozzle Tips

• Red: 0°
• Yellow: 15°
• Green: 25°
• White: 40°
• Black: low pressure

3) BAR Wide Base Pressure Washer Foam Cannon

This Wide Base Pressure Washer Foam Cannon is ideal for easy, efficient cleaning of cars, RV’s, houses, outdoor furniture, and more. Safe for wax and sealant, this pressure washer sprays thick clinging foam for deep-cleaning action.

• Works with gas and electric pressure washers up to 3300 PSI
• Fully adjustable fan pattern and flow regulator
• Detergent dial knob on top adjusts the ratio of soap to water
• Blends soap and water for deep-cleaning foaming action
• Stainless steel and brass neck and nozzle
• Universal 1/4 in. quick connect collar works with most major pressure washer brands
• Includes plumbers tape

4) Snow Foam Shampoo

Tested in house to our exacting standards, the Foamstar has been formulated to work most effectively with our snow foam lance. The intense and thick foam generated clings to the paintwork of your vehicle and pulls away dirt and grime. Leave it on for 15 seconds to half a minute and watch the dirt wash away.

Our Foamstar has been specifically formulated to be pH neutral so it won’t strip back wax or any sealants.

Note: This product is not a touch-free wash solution (products that offer that capability are acidic in nature whilst ours is pH neutral).

Foamstar Dilution Instructions:

We suggest a dilution factor of 1 part detergent to 4 parts water. So 100ml of solution to another 400ml of water will enable you to thoroughly coat your average sized sedan with foam from top to bottom.
