IOD750H Multi Spreader, Hydraulic drive, self loading with side dresser

Iris Multi Spreader (hydraulic, self loading,with side dressing attachment)

OVERVIEW

Iris IOD750HSC Multi Spreader 970L, is self loading and will spread lime, fertiliser and compost with side dressing attachment for shooting the material under orchard rows , tree line etc. It is the perfect all round solution for spreading lime and silicates, as well as organic enviromentally friendly composts and manures and woodchip .

FEATURES AND BENEFITS:

-Hydraulic drive spinner and feed auger

-Hydraulic tipping

-Manual adjustment of butterfly valve for controlling granular type fertilisers and lime.

-Manual adjustment of compost shutter for manure and larger materials

-Removable side discharge unit,

-Standard deflector is also included for normal 180 degree spreading

-Both the feeding Agitator and Spinner are driven by 1 hydraulic service

-Loading Ram requires 1 hydraulic service

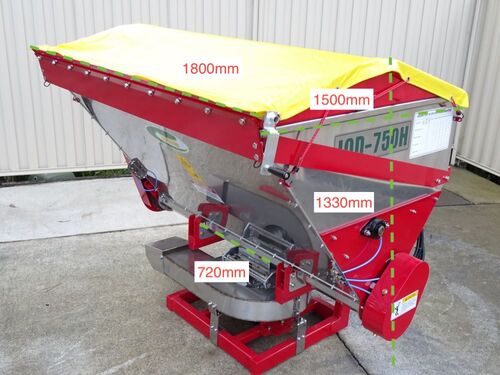

Specifications	Units
Width	1800mm
Length	1320mm
Height (includes cover)	1330mm
Capacity	780 Litres
Weight	320kg (empty)
Spreading diameter (adjustable)	8-12 m 180
Attachment	3 Point Linkage
Spinner and shutter system	Hydraulic
Auger and aggitator	Hydraulic
Hopper material	Stainless steel
Minimum top link width	720 mm

 Please Note: For tipping function of the cutting edge to reach the ground you need 850mm of lift height between the ground and the centre of the linkage arm hole
