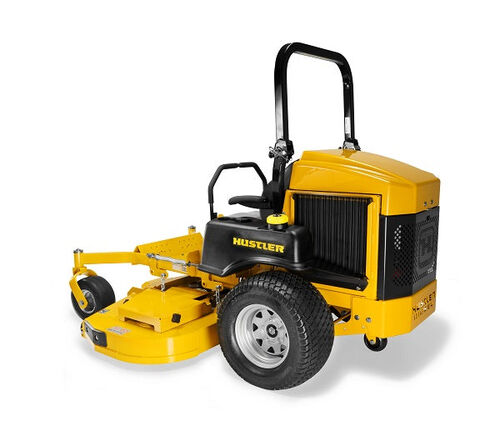

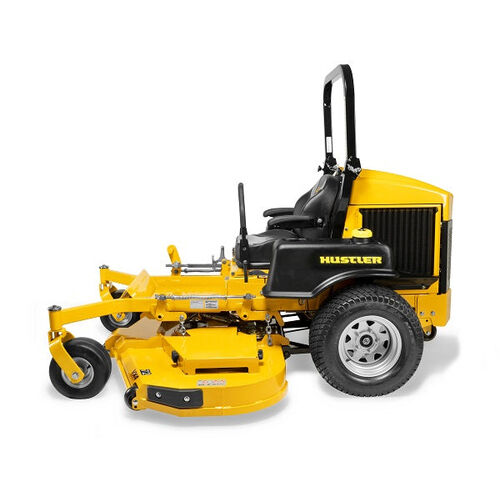

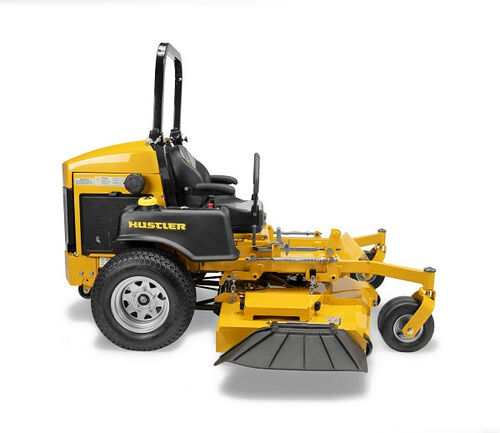

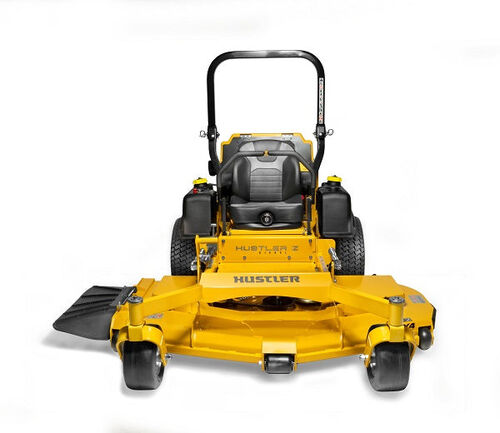

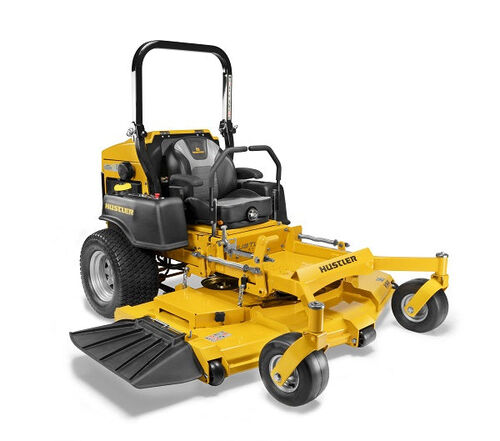

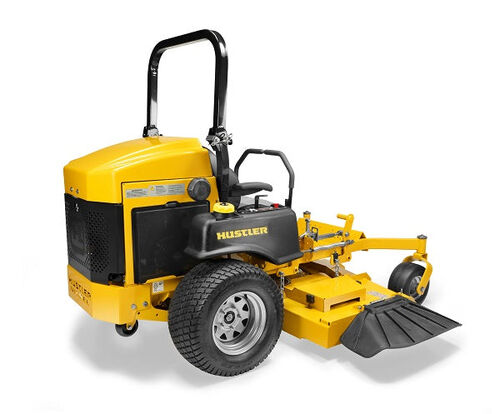

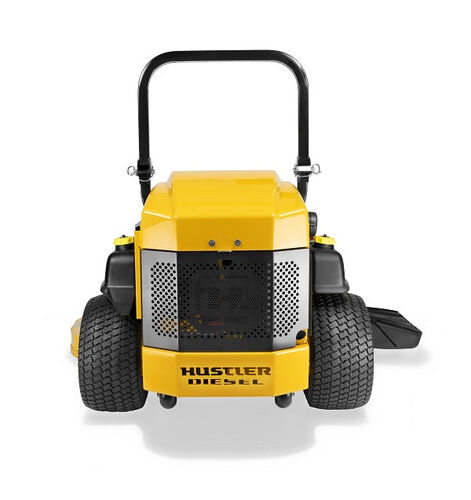

Hustler Z Diesel 60″ Commercial Zero-Turn Mower w/ Perkins Diesel (25HP)
Original price was: $21,688.00.$399.99Current price is: $399.99.
All Hustler Lawn MowersWarranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited EngineLiteratureZ Diesel Owners ManualZ Diesel General Service ManualZ Diesel 60″ Parts ManualHustler Turf CatalogDiesel Power to do Any JobThe Hustler® Z Diesel 60″ zero-turn mower gives you all the great features of a Hustler product paired with the…
All Hustler Lawn Mowers |
Warranty
|
Literature
|
Diesel Power to do Any Job
The Hustler® Z Diesel 60″ zero-turn mower gives you all the great features of a Hustler product paired with the fuel economy of a diesel.
- 60” or 72” side or rear-discharge VX4® deck – engineered to move more grass at high speeds while maintaining cut-quality
- Heavy-duty fabricated frame – unmatched durability
- Exclusive SmoothTrak™ steering – responsive, precise control
- Patented automatic park brake
- I3M suspension seat with adjustable armrests and 3-inch travel range
- Patented belt drive system – provides up to three times longer belt life
- Clean, compact, service-friendly design
Hustler Turf Accessory Compatibility Chart |
|
Hustler Z Diesel Accessories |
|
| Fabric Side Catcher 3.5 bushel | 943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) | GCSSXL |
| Mulching Kit 60″ | 124314 |
| Flex Forks Kit (cannot use with Bagger installed) | 116281 |
| Electric Deck Lift | 123739 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit | 109920 |
| Light Kit | 110153 |
| Sand Kit 60″ | 124137 |
| Steering Lever Extension Kit | 122760 |
| Stripe Kit 60″, 72″ Deck | 116842 |
| Rear Anti-Scalp (Dual) 60″ Deck | 113911 |
| Rear Anti-Scalp (Single) 60″, 72″ Deck | 113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) | 607446 |
| Semi-Pneumatic Tire – tire/wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Perkins |
| Engine Horsepower | 25 |
| Displacement | 1130cc |
| Cooling | Liquid-cooled, direct-drive, mechanical cooling fan |
| Air Cleaner | Heavy-Duty Canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Tandem Hydro-Gear 21cc pumps with Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 1.3 gallons |
| Hydraulic Cooling | Oil Cooler w/ 8″ fan |
| Fuel Capacity | 14.4 gal. |
| Ground Speed (Fwd) | Up to 11.5 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50″ |
| Blade Tip Speed | 18,200 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
7 gauge welded steel
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar, Side of deck: 1.5″ x .375″ steel bar |
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1656 |
| Height (Inches) | 51, 69 w/ ROPS |
| Length (Inches) | 86.8 |
| Width w/ Chute Up (Inches) | 66 |
| Tire-to-Tire Width (Inches) | 56 |
| Productivity (Acres Per Hour) | 5.57 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions about this Hustler Z Diesel 60″ zero-turn mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
