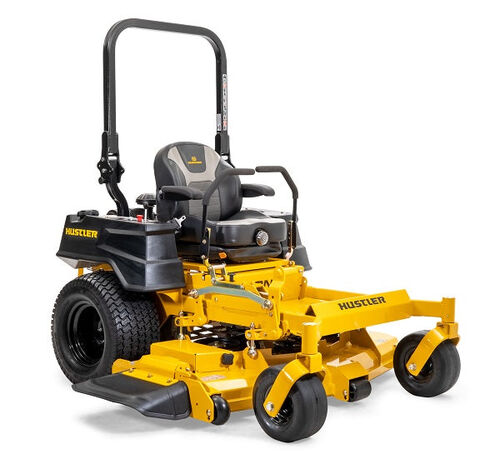

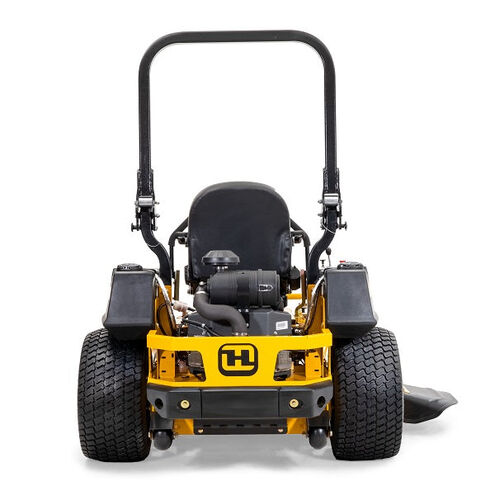

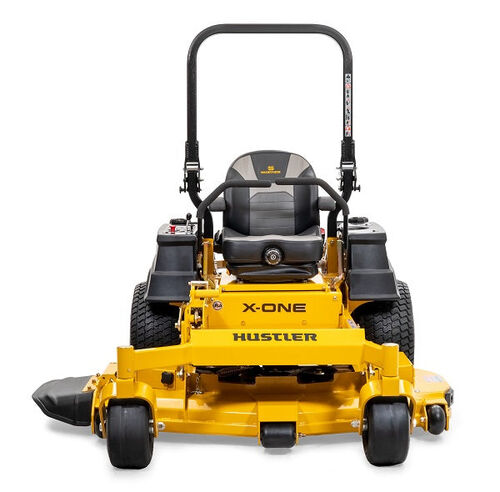

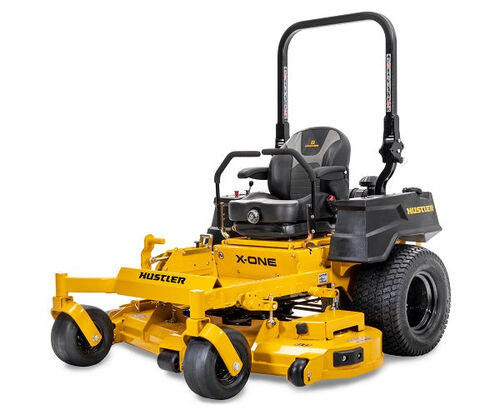

Hustler X-One 60″ Commercial Zero-Turn Mower w/ Kawasaki FX850 EFI (29.5HP)
Original price was: $15,410.00.$399.99Current price is: $399.99.
All Hustler Lawn MowersWarranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited EngineLiteratureX-One Owners ManualX-One General Service ManualX-One 60″ Parts ManualHustler Turf CatalogBuilt For All Day, Every Day PerformanceThe X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of…
All Hustler Lawn Mowers |
Warranty
|
Literature
|
Built For All Day, Every Day Performance
The X-ONE® is built for the full-time commercial landscaper to provide all day, every day performance. It offers a choice of carbureted or fuel-injected engines and a selection of side or rear-discharge decks. The X-ONE sets the standard for commercial zero-turn value.
- Fabricated Frame for Durability: 1.5” x 3.0” steel frame making it one of the toughest and most durable in its class.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”-5.5” with your foot.
- VX Deck: Fabricated 7 ga. steel engineered for extreme vacuum for enhanced performance and cut quality.
- Commercial-grade Torque: Driven by Parker utilized transmissions.
- I3M Seat: High-back seat with adjustable armrests and 3-inch suspension travel range.
- Incredible Power: Power through with Parker unitized 12cc/rev pumps. Finish fast with a choice of engine sizes.
Hustler Turf Accessory Compatibility Chart |
|
Hustler X-One Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) | 943571 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) | 943555 |
| Bac-Vac & 3 Bag Catcher Adapter 60″ | 128802 |
| Side Fabric Catcher 3.5 Bushel (no adapter needed) | 943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) | GCSSXL |
| Mulching Kit 60″ | 126127 |
| Flex Forks Kit (cannot use with Bagger installed) | 606696 |
| Front Light Bar Kit | 128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) | 128869 |
| Hitch Kit | 123915 |
| Steering Lever Extension Kit | 122760 |
| Stripe Kit (model year 2023 and newer) | 128700 |
| Rear Anti-Scalp (single) | 113910 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Tire 24 x 12N12 | 607447 |
| Run Flat – tire/wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX850 EFI |
| Engine Horsepower | 29.5 |
| Displacement | 852cc |
| Cooling | Air Cooled |
| Air Cleaner | FX: Heavy Duty Canister, FT: Vortical |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear® ZT-4400® |
| Hydraulic Cooling | Transmission mounted fan |
| Fuel Capacity | Duel fuel tanks w/ 12 gal. total capacity |
| Ground Speed (Fwd) | Up to 12 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 60″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 20.50″ |
| Blade Tip Speed | 18,800 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge with 7 gauge wrappers
|
| Spindle Mounts | Reinforced 7 ga. stamped disc |
| Impact Trim Area |
Front of deck: 11 gauge formed channel with rolled edge
|
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1245 |
| Height (Inches) | 49, 72.5 w/ ROPS up |
| Length (Inches) | 80.2 |
| Width w/ Chute Up (Inches) | 62.4 |
| Tire-to-Tire Width (Inches) | 54.5 |
| Productivity (Acres Per Hour) | 6.36 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | 111.1″ |
| Mower Width w/ Catcher | 70.9″ |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | 108.3″ |
| Style 2: Mower Width w/ Catcher | 70.9″ |
If you have any questions about this Hustler X-One 60-inch mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
