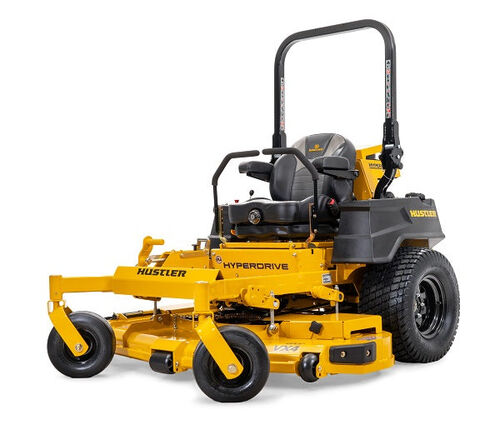

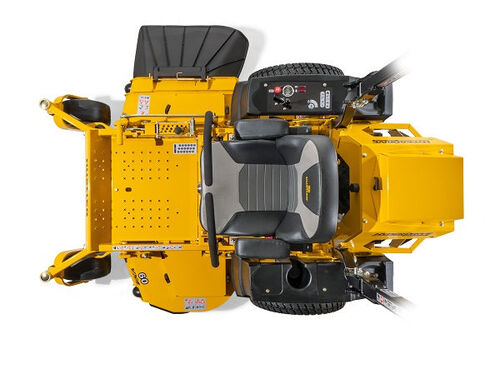

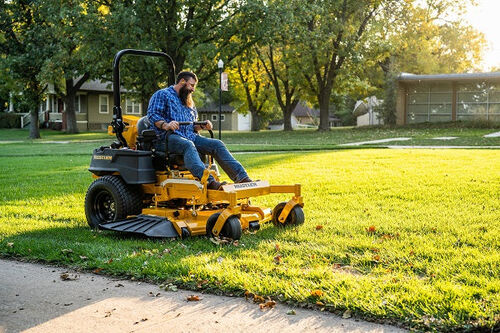

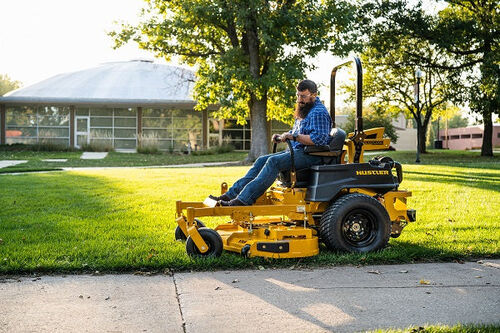

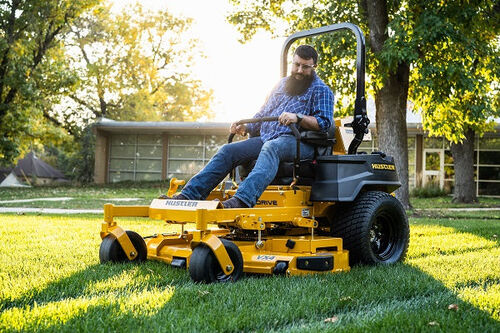

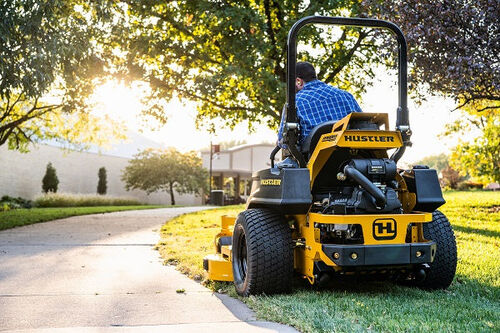

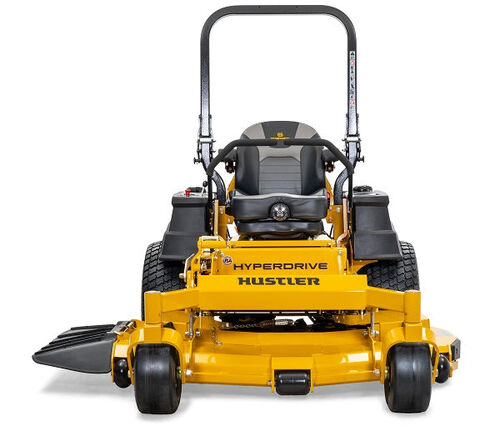

Hustler Super Z HyperDrive Rear Discharge 72″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 EFI (38.5HP)
Original price was: $21,232.00.$399.99Current price is: $399.99.
All Hustler Lawn MowersWarranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited EngineLiteratureSuper Z HyperDrive Owners ManualSuper Z HyperDrive General Service Manual Super Z HyperDrive 72″ Parts ManualHustler Turf CatalogPowerhouse that Delivers Unrivaled PerformanceThe Hustler Super Z HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest,…
All Hustler Lawn Mowers |
Warranty
|
Literature
|
Powerhouse that Delivers Unrivaled Performance
The Hustler Super Z HyperDrive® features Hustler’s exclusive HyperDrive transmission system – the largest, most durable drive system in the industry. And, it’s backed by a 3,000-hour drive system warranty.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Foot-Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- Commercial-grade Torque: Danfoss DDC-20 pumps and Parker TG280 wheel motors.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high speeds while maintaining cut quality.
- Easy Serviceability: Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.
- Large Drive Tire: Large 26″ drive tires provide a smoother ride experience.
- Hydraulic System Warranty: 3000-Hour pump and motor warranty unmatched in the industry.
- HyperDrive Hydro System: A Hustler® exclusive, industrial pumps and high torque wheel motors, 3-gallon reservoir, oil cooler, and hot oil shuttle.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super Z Hyperdrive Accessories |
|
| Mulching Kit 72″ RD | 122651 |
| Flex Forks Kit (cannot use with Bagger installed) | 606696 |
| Front Light Bar Kit | 128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) | 128869 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit | 123915 |
| Steering Lever Extension Kit | 122760 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf 24 x 12N12 (1 tire) | 607445 |
| Semi-Pneumatic Tire – tire/wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 EFI |
| Engine Horsepower | 38.5 |
| Displacement | 999cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy Duty Canister |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Dual Hydrostatic Danfoss DDC-20 Transmission w/Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/9″ fan |
| Fuel Capacity | 11.7 gal. |
| Ground Speed (Fwd) | Up to 16 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 72″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 24.50″ |
| Blade Tip Speed | 18,500 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5″ x .375″ steel bar |
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat (adjustable armrests & back) |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 26 x 12-12 |
| Weight (lbs) | 1676 |
| Height (Inches) | 47.8, 73.5 w/ ROPS up |
| Length (Inches) | 93 |
| Width w/ Chute Up (Inches) | 78 |
| Tire-to-Tire Width (Inches) | 60 |
| Productivity (Acres Per Hour) | 9.31 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
If you have any questions give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
