Sale!

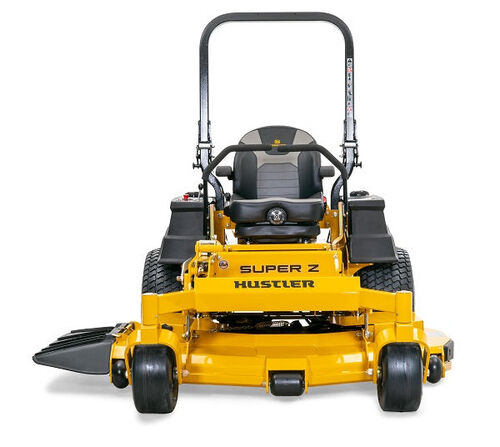

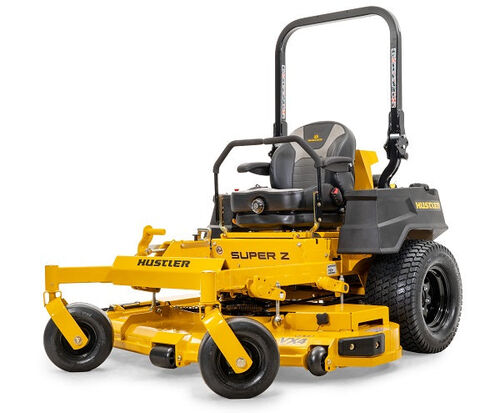

Hustler Super Z 72″ Commercial Zero-Turn Mower w/ Kawasaki FX1000 EFI (38.5HP)
Original price was: $18,834.00.$399.99Current price is: $399.99.
All Hustler Lawn MowersWarranty5 Year / 1200 Hour (First 2 Years No Hour Limit)3 Year Limited EngineLiteratureSuper Z Owners ManualSuper Z General Service ManualSuper Z 72″ Parts ManualHustler Turf CatalogFeatures Hustler’s VX4 Deck, Heavy-Duty HydraulicThe Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass…
All Hustler Lawn Mowers |
Warranty
|
Literature
|
Features Hustler’s VX4 Deck, Heavy-Duty Hydraulic
The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.
- VX4® Deck: Fabricated 7 ga. steel deck engineered to move more grass at high speeds while maintaining cut quality.
- Foot Operated Deck Lift: Easily adjust the deck height between 1”- 5.5” with your foot.
- I3M Suspension Seat: High-back seat with adjustable armrests and 3-inch travel range.
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
- Large Fuel Capacity: Large 11.7 US gal. fuel tank for all-day mowing.
- Easy Serviceability: Flip-up seat pan, removable floor pan, and vented pulley covers for easy and simple maintenance.
- Unmatched Hydraulics: Heavy-duty hydraulics deliver more power, and torque than many other machines.
Hustler Turf Accessory Compatibility Chart |
|
Hustler Super Z Accessories |
|
| 3 Bag Powered Catcher (must order (1) adapter kit below to complete) | 943571 |
| Bac-Vac Catcher (must order (1) adapter kit below to complete) | 943563 |
| 3 Bag Catcher & Bac-Vac Adapter 72″ | 128800 |
| Fabric Side Catcher 3.5 Bushel (no adapter needed) | 943654 |
| Standard Aluminum Side Catcher 3.3 Bushel (Accelerator) | GCSS |
| Jumbo Aluminum Side Catcher 5 Bushel (Accelerator) |
GCSSXL |
| Mulching Kit 72″ | 124316 |
| Flex Forks Kit (cannot use with Bagger installed) | 606696 |
| Front Light Bar Kit | 128867 |
| Side Light Bar Kit (must purchase 128867 to add side light) | 128869 |
| Beacon Kit | 110467 |
| Flasher Kit | 124554 |
| Hitch Kit | 123915 |
| Sand Kit 72″ | 124139 |
| Steering Lever Extension Kit | 122760 |
| Stripe Kit 66″, 72″ Deck | 116842 |
| Rear Anti-Scalp (Single) 54″, 60″, 66″, 72″ Deck | 113910 |
| Rear Anti-Scalp (Dual) 72″ Deck | 113937 |
| Michelin X-Tweel Turf Caster 13 x 6.5-6 Smooth (1 tire) | 607444 |
| Michelin X-Tweel Turf Tire XL 26 x 12N12 | 607445 |
| Semi-Pneumatic Tire – tire / wheel assembly 13 x 6.5 x 6 | 607964 |
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FX1000 EFI |
| Engine Horsepower | 38.5 |
| Displacement | 999cc |
| Cooling | Air Cooled |
| Air Cleaner | Heavy-Duty Canister |
| Engine Warranty | 5 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear 21cc PY pumps with Parker TG wheel motors |
| Hydraulic Lines | Stainless Steel Parker Seal-Loc Technology |
| Reservoir Capacity | 3 gallons |
| Hydraulic Cooling | Oil Cooler w/8″ fan |
| Fuel Capacity | 11.7 gal. |
| Ground Speed (Fwd) | Up to 14 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 72″ |
| Cutting Height | 1″ to 5.5″ |
| Deck Depth | 5.5″ |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 24.50″ |
| Blade Tip Speed | 18,500 |
| Spindles | Ductile cast iron with steel shaft and sealed ball bearings |
| Deck Engagement | Electric PTO Clutch |
| Deck Material |
Fabricated 7 gauge
|
| Spindle Mounts | Reinforced 7 gauge stamped disc |
| Impact Trim Area | Front of deck: 11 ga. Formed Bump Bar / Side of deck: 1.5″ x .375″ steel bar |
Construction |
|
| Frame | 1.5″ X 3″ steel tubing |
| Front Axle | Fabricated with tapered roller bearings |
| Front Caster Wheel |
Tapered wheel bearings and debris cap
|
| Front Caster Fork | Fabricated 1/2″ steel |
General |
|
| Seat | I3M Suspension Seat |
| Cup Holder | Yes |
Dimensions |
|
| Front Tire (Inches) | 13 x 6.5-6 |
| Drive Tire (Inches) | 24 x 12-12 |
| Weight (lbs) | 1526 |
| Height (Inches) | 46.8, 72.5 w/ ROPS up |
| Length (Inches) | 93 |
| Width w/ Chute Up (Inches) | 78 |
| Tire-to-Tire Width (Inches) | 60 |
| Productivity (Acres Per Hour) | 8.14 |
Warranty |
|
| Warranty | 5 Year / 1200 Hour (First 2 Years No Hour Limit) |
Dimensions with Catcher |
|
| Catcher Style | 3-bag |
| Powered / Non-Powered | Powered |
| Catcher Capacity | 12 bushel |
| Mower Length w/ Catcher | 119.2″ |
| Mower Width w/ Catcher | 82.9″ |
| Style 2: Catcher Style | BAC-VAC |
| Style 2: Powered / Non-Powered | Powered |
| Style 2: Catcher Capacity | 10 bushel |
| Style 2: Mower Length w/ Catcher | 112.7″ |
| Style 2: Mower Width w/ Catcher | 82.9″ |
If you have any questions about this zero-turn 72-inch deck mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
