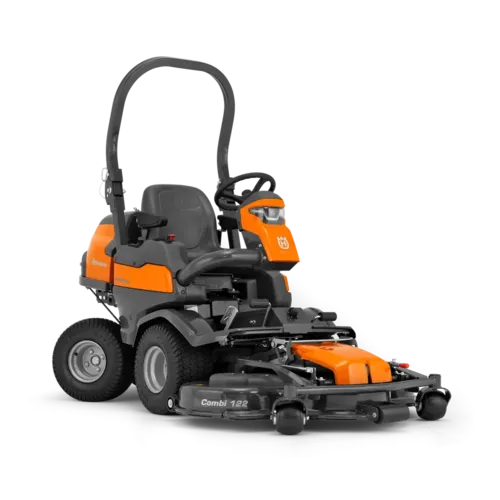

Features:
- Turn-key start
- ACTech
- You can empty collector from the seat
- Articulated steering
- Automatic blade engagement
- Front-mounted cutting deck
- Pivoting rear axle
- Service position
- Comfortable driver’s position
- Easy-access controls
- Pedal-operated hydrostatic transmission
- Easy-access cutting height lever
- Engine behind driver
- Non-collecting mode
- LED headlights
- Pivoting support wheels
- External fuel cap
- Transparent fuel tank
- Four large wheels
- Hour meter with service minder
Technical Specification:
- Motor/engine manufacturer – Briggs & Stratton
- Engine name – Endurance Series
- Net power at preset rpm Energy – 12.6 kW
- Net power at preset rpm – 3100 rpm
- Cylinder displacement – 656.0 cm³
- Cylinders – 2
- Engine Cooling – Air
- Generator – 16.0 A
- Power/fuel type – Gasoline
- Fuel tank volume (with reserve) – 12.0 l
- Engine lubrication type – Full pressure
- Oil filter – Yes
- Exhaust emissions (CO2 EU V) – 830 g/kWh
- Battery capacity – 5.5 Ah
- Battery pack weight – 1.1 lbs
- Cutting width – 112.0 cm
- Cutting width, min – 103 cm
- Cutting width, max – 112 cm
- Cutting deck type – Stamped
- Cutting deck material – Steel
- Cutting methods – Collect/Non-Collect
- Cutting height max – 75 mm
- Cutting height min – 25 mm
- Blade engagement – Automatic
- Blades – 3.0 pcs
- Powder-coated cutting deck – Yes
- Weight (excl. cutting equipment) – 326 kg
- Tyre dimensions, front – 16×6,5-8
- Tyre dimensions, rear – 16×6,5-8
- Wheelbase – 90.3 cm
- Ground clearance – 95 mm
- Base machine, length – 208.9 cm
- Base machine, width – 103 cm
- Base machine, height – 128.4 cm
- Weight – 326 kg
- Transmission type – Hydrostatic
- Transmission manufacturer – Tuff Torq
- Drive method – Pedal-operated
- Speed forward max – 8 km/h
- Speed reverse min – 7 km/h
- Transmission model – K66
- Seat material – PU
- Seat back height – High
- Foldable seat – Yes
- Sound pressure level at operators ear – 85.0 dB(A)
- Sound power level, measured – 99.0 dB(A)
- Sound power level, guaranteed (LWA) – 100.0 dB(A)
- Vibration level steering wheel – 2.6 m/s²
- Vibration level seat – 0.7 m/s²
