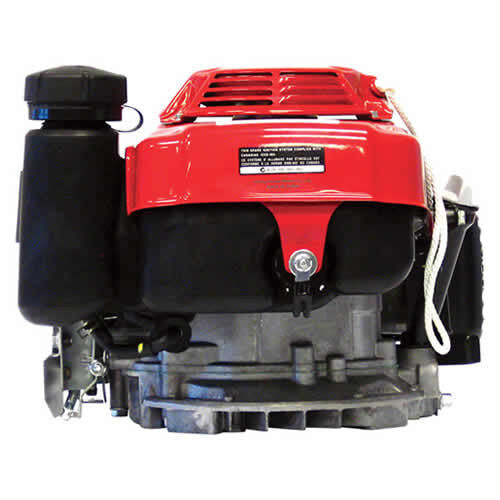

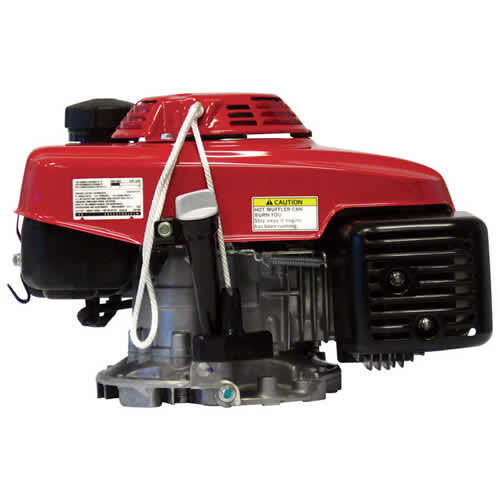

Honda GXV160 Petrol Lawnmower Engine (5.0hp)

Description

The GXV160 is the engine that powers Honda lawn mowers so you know it’ll work in practically any commercial lawn & garden equipment.It’s also designed to power Forestry equipment, Construction/Industrial and Agricultural equipment.The GXV160’s precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.Compared to its competitors, the GXV160 is exceptionally quiet. This is in part due to its large capacity, multi-chamber exhaust system.Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system. Of course, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.The GXV160’s simple operation is renowned, but if you need assistance or spare parts, Honda’s got you covered.

Specifications

• TYPE  – 4-stroke, overhead valve, single-cylinder, Vertical Shaft
• BORE & STROKE  – 68 x 45mm
• DISPLACEMENT  – 163 cm3
• STARTING SYSTEM  – Recoil Starter
• RECOMMENDED FUEL –  Unleaded
• LUBRICATION SYSTEM –  Forced Splash
• FUEL TANK CAPACITY –  1.8l
• DIMENSIONS  – 420 x 365 x 357mm
• DRY WEIGHT –  14.3kg

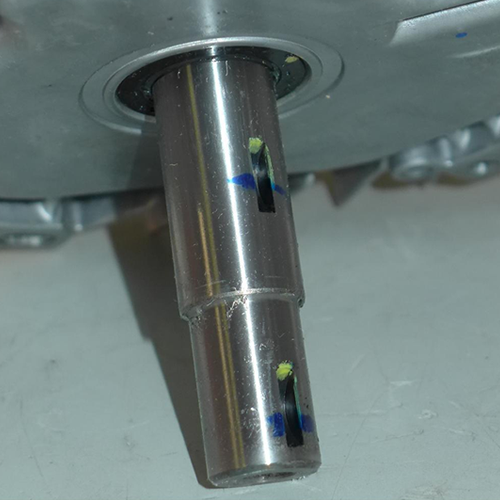

• SHAFT – 7/8 inch with 1 inch step
• NOTE – THIS SPEC DOES NOT SUIT HONDA “HRU” MOWER MODELS

.
