HEAVY DUTY SERIES 2 MULTI-PURPOSE BLADE
Original price was: $10,120.00.$288.99Current price is: $288.99.

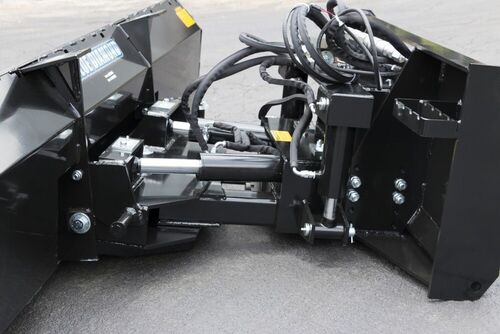

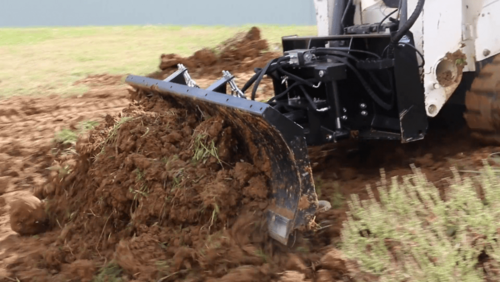

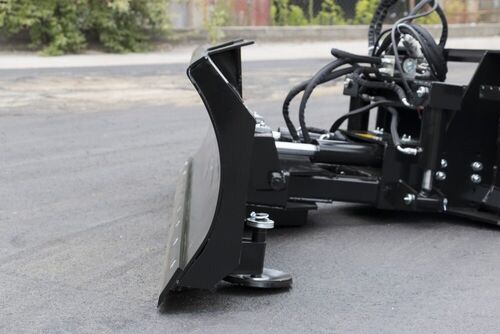

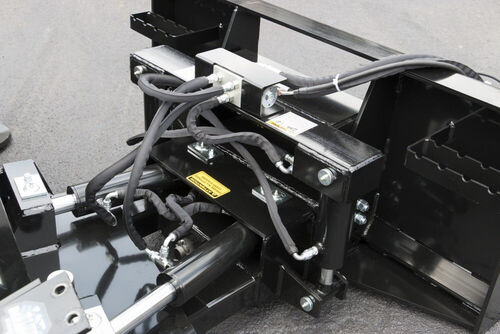

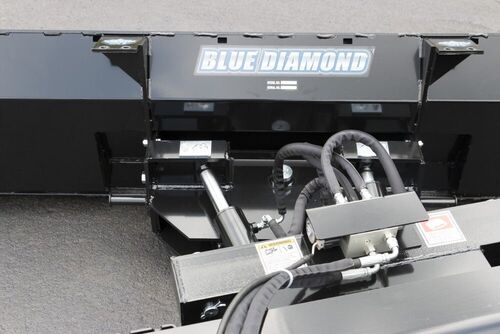

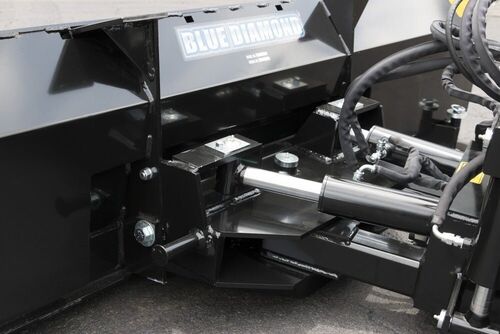

The Heavy-Duty Series 2 Multi-Purpose Blade is extremely rugged, easy to use, and offers superior visibility. It has a bolt-on edge, skid shoes, and heavy-duty cylinders. Using a proven pivot system, it can tilt 10˚ and angle 30˚. A blade extension is available for 8” of added height. Don’t settle for…
The Heavy-Duty Series 2 Multi-Purpose Blade is extremely rugged, easy to use, and offers superior visibility.
It has a bolt-on edge, skid shoes, and heavy-duty cylinders. Using a proven pivot system, it can tilt 10˚ and angle 30˚. A blade extension is available for 8” of added height. Don’t settle for anything less! It can even convert to a snowplow by pulling two pins and adding a height extension and trip springs.
FEATURES INCLUDE:
- NEW heavier moldboard design
- NEW even heavier cylinders
- NEW electrical, now compatible with Bobcat 7-pin
- NEW grease fittings on all cylinder pins
- NEW added protection on electrical and hydraulic valve components
- Tried and proven tilt system
- Optional trip springs
- Trip override pin
- Replaceable skid shoes
- Replaceable bolt-on edge
- Optional 8″ blade height extension
PRODUCT SPECS
| PART NUMBER | MODEL | MAX WIDTH ANGLE | WEIGHT | HEIGHT |
|---|---|---|---|---|
| 123065 | 6′ HD Series 2 | 66.25″ | 1012 lbs. | 22″ |
| 123070 | 7′ HD Series 2 | 72.50″ | 1040 lbs. | 22″ |
| 123075 | 8′ HD Series 2 | 82.80″ | 1068 lbs. | 22″ |
| 223700 | Trip Springs Kit (Set of 4) | — | 12 lbs. | — |
