Hanmey 1.25m Flail Mulching Mower for Sub Compact tractors

Hanmey 1.25m Flail Mulching Mower for Sub Compact tractors



OVERVIEW:

This is a lighter version of the popular Hanmey 1.25m Flail mower, making it ideal for Sub Compact Tactors which have a low lifting capacity before the front wheels start coming off the ground. Ideal for tractors like John Deere, 1023 or 1025R Kubota BX2380 or BX2680 Kioti CS2610 etc

FEATURES AND BENEFITS:

-The EFGM125 Flail Mulching Mower features a 30 Hp gearbox with built in over run clutch

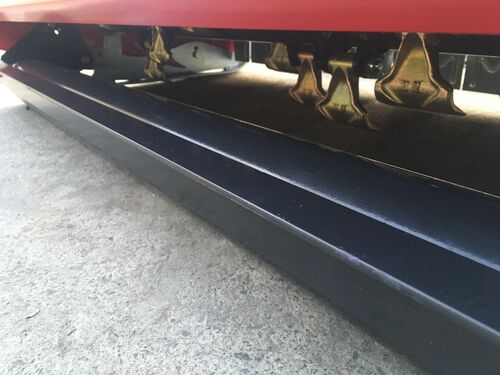

-24 forged Hammer flails (slightly lighter flail than the larger Hanmey flail mower but similar design that can handle heavy growth , branches and sticks etc)

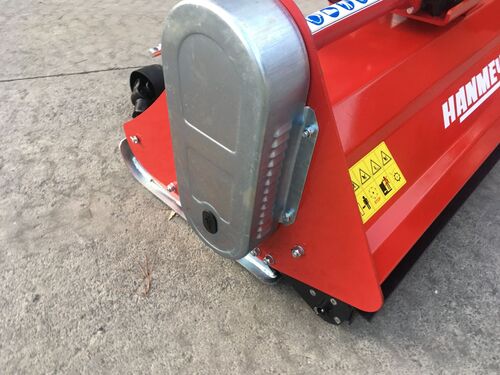

-3 drive belts with heavy duty galvanised belt cover

-Adjustable galvanised skids

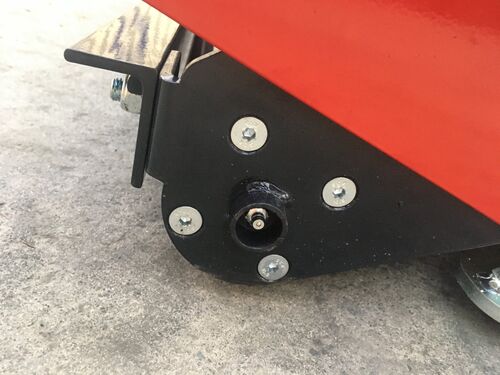

-Adjustable rear roller.

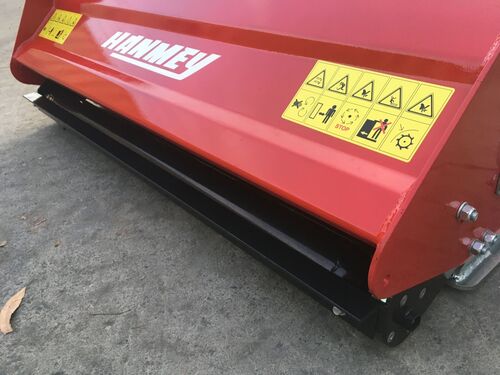

-Front debris guard steel flaps to help prevent grass and debris flying forward into the tractor.

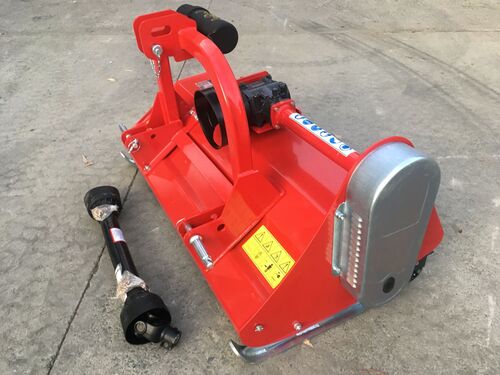

-Includes PTO shaft series 4 .900mm overall length ( will need to be shorten to suit some smaller tractors)

-Category 1 Pins, clevis range  (lift arm spacing ) 710mm  (outer) 615mm  (inner) pin.



Specifications	Units
Overall Width	1360mm
Cutting Width	1250mm
Depth	780mm
Overall Height	850mm
Overall Length including PTO	900mm
Weight	228kg
Mower Offset dimensions	690mm cover-centre: 670mm outside skid – centre
Cutting Off-set dimensions	518mm  left of centre/ 734mm right of centre
Linkage 3 pt linkage	Category 1
Number of hammers	24
Tractor power range	16 HP – 35 HP Max
Rotor RPM	540
Rotor Speed	2200
Rotor diameter and thickness	108 x 8
Number of Belts	3
PTO	Series 4
Category 1 pins clevis range (lift arm spacing)	710mm outer
	615mm inner pin
Side thickness	6mm
Body Thickness	4mm



Made by Hanmey in China, assembled by our experts and delivered by Mainfreight fully assembled

18 month waranty
