Flipper PTO Flail Mower 1.58m

Del Morino Flipper 158 PTO Flail Mulching Mower (with reversible mounting)

Overview

Del Morino has been in the business of making farm machinery in Italy since 1875 and, in addition to a history steeped in tradition and the corresponding know-how, they offer excellent high-quality implements for small to medium-sized tractors.

The Flipper mulcher is designed to operate on the front or rear PTO of your tractor with 540 rpm.

It as a Comer gearbox with freewheel and pass-through drive shaft

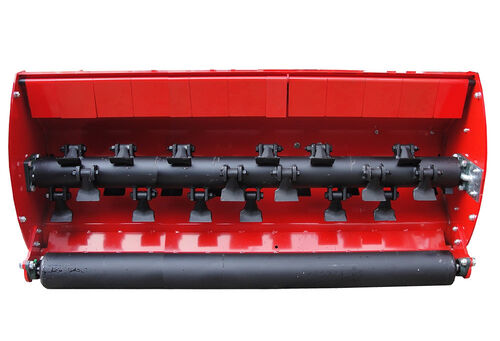

The Rotor shaft is electronically balanced  and with 10 mm wall thickness

At the rear is a large adjustable levelling roller with a scraper.

The roller as well as the flail shaft are fitted with branded flange bearings that can be easily greased.

The V-belt tensioning idler pulley is easy to adjust from the side of the V-belt cover (there is no need to adjust the gearbox or V-belt pulleys, etc.).

Features & Benefits

– Reversible mounting (can be used on the front and back of the tractor)

– Cast Iron gearbox, with overrun clutch, and pass through input shaft.

– 3 Belts with adjustable tensioner

– Electronically balanced rotor turning at 2400 RPM

– The frame is reinforced with square steel tubing on the leading and rear edges.

– Solid 4mm steel deck, with adjustable rear roller

– Side skids for smooth, even mowing

– 3 pt linkage, adjustable for Category 1 and 2 tractors

– PTO Shaft Series 4

Specifications

Specifications	Units
Overall Width	1800 mm
Cutting Width	1580 mm
Depth	690mm
Overall Height	890mm
Weight	288kg
Linkage 3 pt linkage	Category 1 and 2
Number of hammers	24
Tractor power range	20-55 HP
RPMS	2400
Number of Belts	3  SPB red power 3
PTO	Series 4
Steel thickness	4mm



Notes

Manufactured In Italy

24-month warranty
