Flail Mulching Mower 1.75m

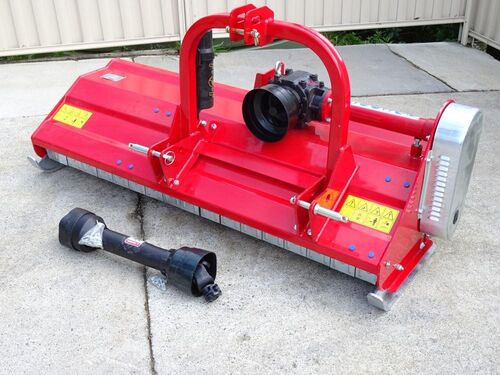

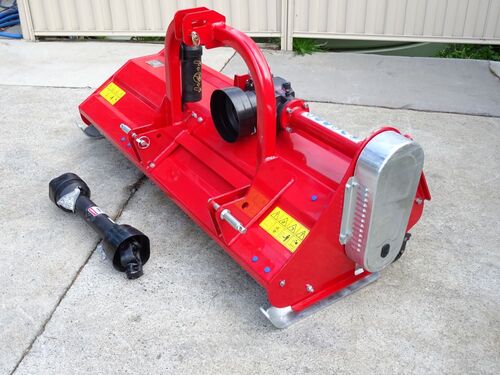

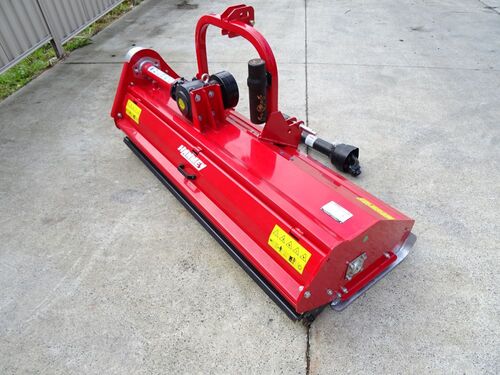

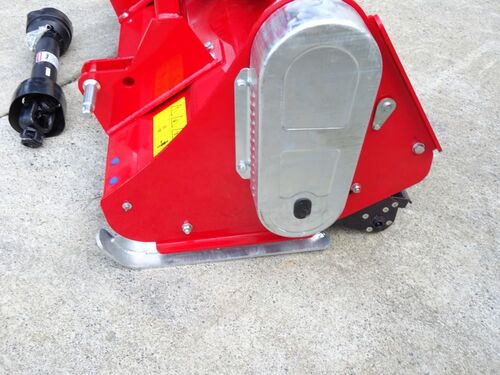

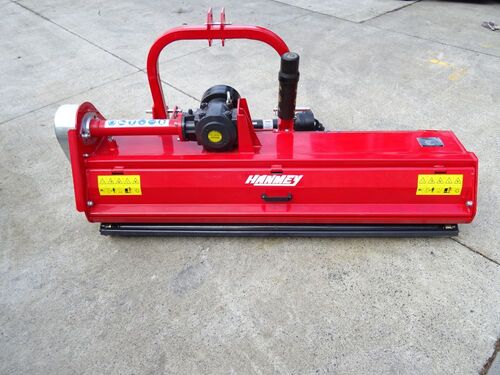

Hanmey 1.75m Heavy Duty Flail Mulching Mower

Overview

These mowers use heavy-duty hammer flails and perform extremely well in long grass and rough areas mulching grass, sticks etc as it cuts while still leaving a top-notch cut on lawn grass. This Hanmey Flail mower is exceptionally good quality and superior to all we have experienced in its price range. This 1.75m size is ideal for 35-50 hp tractors. One of the main advantages of this model is that the rear door can be opened to help eject large volumes of grass and get easy access for maintenance.

Features & Benefits

– Deck and components are CNC laser cut giving superior quality control, with perfect alignment maximising the life span of bearings belts etc.

– Electronically balanced rotor shaft, resulting in smooth operation without vibration

– 4mm deck, 6mm sides,8mm skids, 10mm steel used for 3-point linkage

– Front steel guard flaps with rear roller

– Zinc-plated 8.8-grade bolts and nylock nuts

– Fixed offset linkage so you can get closer to fence lines or trees

– Thick durable quality powder coating and zinc-plated fasteners.

– Purpose-built gearbox with built-in overrun clutch and lifting

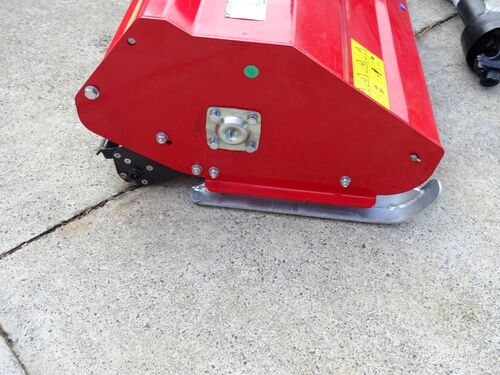

– Adjustable rear roller and skids

– Adjustable rear opening panel for high output of grass, and ease of maintenance

– Spiral Flail configuration on the rotor for higher performance at low HP

Specifications

Specifications	Units
Overall Width	1900mm
Cutting Width	1720mm
Depth	790mm
Overall Height	900mm
Weight	360kg
Offset dimensions	518 mm left of centre: 1232mm  right of centre
Linkage 3 pt linkage	Category 1+2
Number of hammers	28
Tractor power range	35-55 HP
Rotor speed	2295
Rotor Diameter and width	108 x12
Number of Belts	3
PTO	Series 5 with shear bolt
Opening rear door	Yes
Mower deck thickness	4mm
Side thickness	8mm
Skids  thickness	8mm

Notes

Made by Hanmey in China, assembled by our experts and delivered by Mainfreight fully assembled

2 Year warranty
