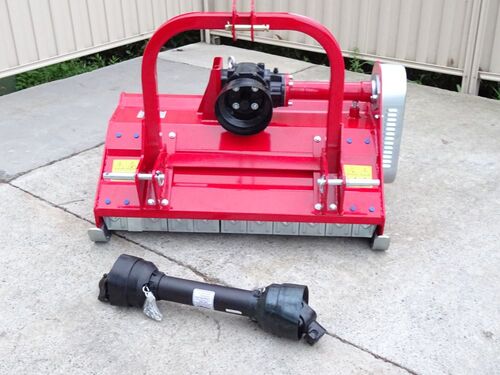

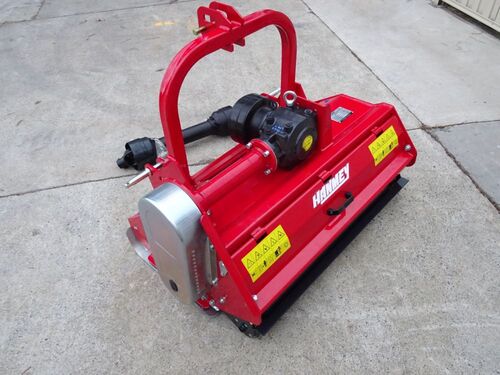

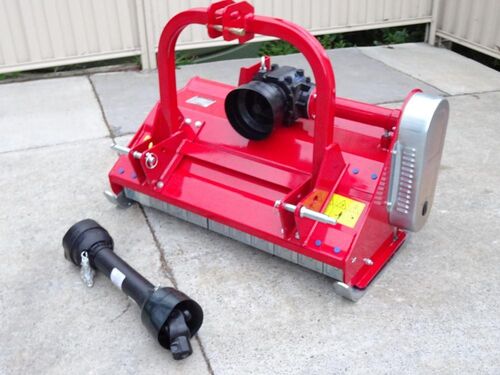

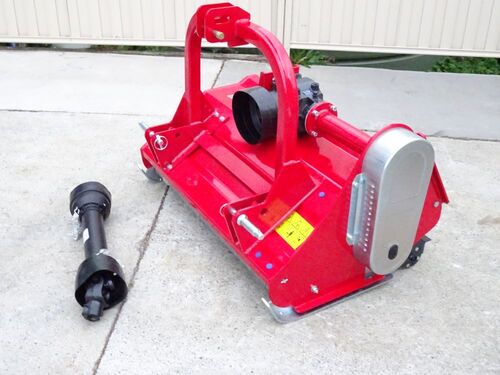

Flail Mulching Mower 1.05m

Overview

These mowers use heavy-duty hammer flails and perform extremely well in long grass and rough areas mulching grass, sticks etc as it cuts while still leaving a top-notch cut on lawn grass. This Hanmey Flail mower is exceptionally good quality and superior to all we have experienced in its price range. This 1.05m size is ideal for 18-50 hp tractors. One of the main advantages of this model is that the rear door can be opened to help eject large volumes of grass and get easy access for maintenance. this width is usually used on narrow orchard tractors or smaller compact tractors which need a heavy-duty mulcher.

Features & Benefits

– Deck and components are CNC laser cut giving superior quality control, with perfect alignment maximising the life span of bearings belts etc.

– Electronically balanced rotor shaft, resulting in smooth operation without vibration

– 4mm deck, 6mm sides,8mm skids, 10mm steel used for 3-point linkage

– Front steel guard flaps with rear roller

– Zinc-plated 8.8-grade bolts and nylock nuts

– Fixed offset linkage so you can get closer to fence lines or trees

– Thick durable quality powder coating and zinc-plated fasteners.

– Purpose-built gearbox with built-in overrun clutch and lifting

– Adjustable rear roller and skids

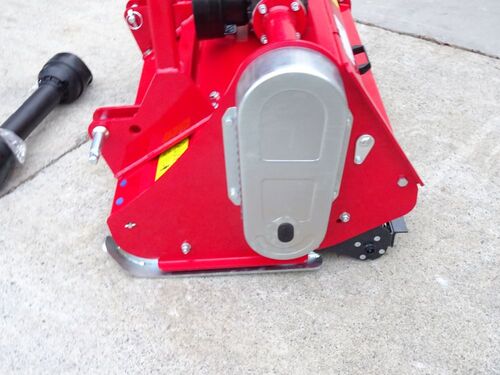

– Adjustable rear opening panel for high output of grass, and ease of maintenance

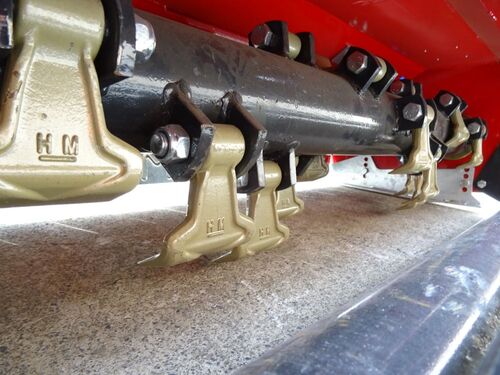

– Spiral Flail configuration on the rotor for higher performance at low HP

Specifications

Specifications	Units
Overall Width	1200mm
Cutting Width	1050mm
Depth	790mm
Overall Height	900mm
Weight	250kg
Offset dimensions	518 left of centre: 532 right of centre
Linkage 3 pt linkage	Category 1
Number of hammers	16
Tractor power range	18-50 HP
RPM	540
Number of Belts	3
PTO	series 4 with shear bolt
Steel thickness	10mm
Mower deck thickness	4mm
Side thickness	6mm
Skids depth	8mm



Notes

Made by Hanmey in China, assembled by our experts and delivered by Mainfreight fully assembled

2 Year warranty
