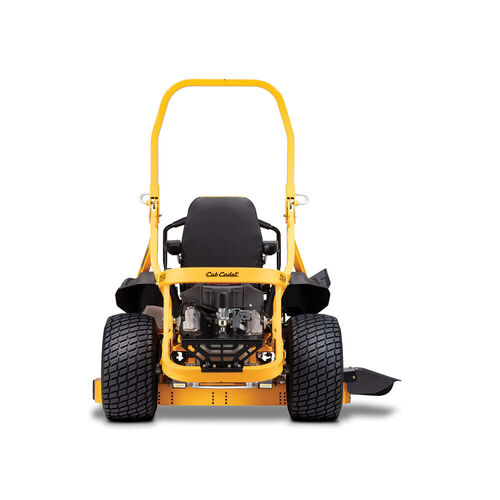

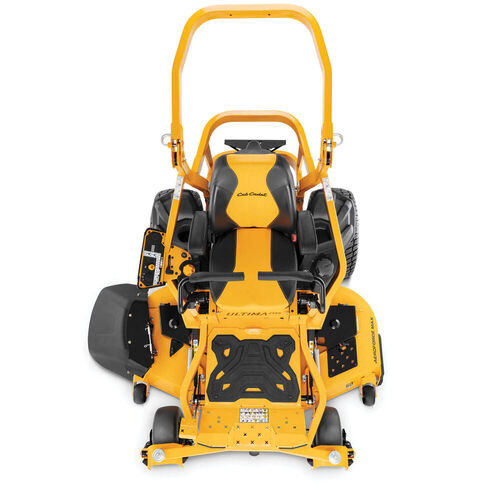

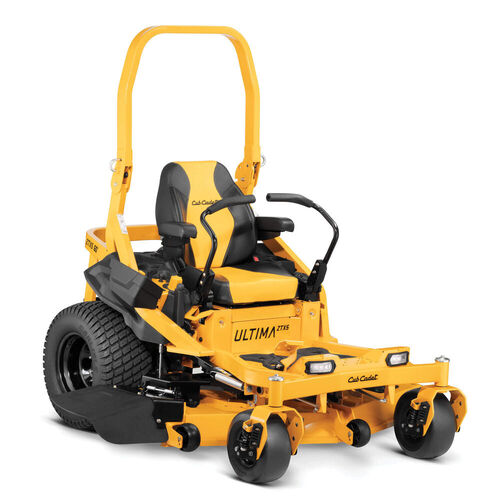

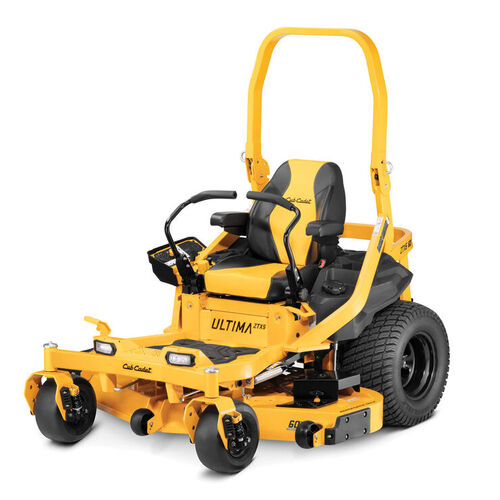

Cub Cadet Ultima ZTX 5 60 KH

Cub Cadet Ultima ZTX 5 60

25 HP Kohler Confidant ZT740, 60″ Fabricated (10 Gauge w/7 Gauge Side Wraps) H-G ZT3200, Electric PTO

Features:

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
• Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind
• Ideal for 4-10 acres with slightly rolling hills and several obstacles

WATCH VIDEO

Engine

AIR FILTER

Single element

CHARGING SYSTEM

12 amp regulated

CHOKE

Choke-a-matic

CYLINDERS

Twin

ENGINE BRAND

Kohler®

ENGINE DISPLACEMENT

747cc

ENGINE MODEL

Confidant

ENGINE MODEL NUMBER

ZT740

ENGINE OIL CAPACITY

2.1 qt US ( 2 L)

ENGINE START

Ignition Key

FUEL DELIVERY

Carburetor

FUEL GAUGE

Yes

FUEL TANK CAPACITY

5.5 gal. US (20.82 L)

GOVERNOR

Mechanical

ENGINE OUTPUT

25HP

LUBRICATION

Fully pressurized

OIL FILTER

Yes

STARTER TYPE

Electric

DRIVE SYSTEM

DRIVE SYSTEM

Hydrostatic

FORWARD SPEED

8.5 MPH / 13.7 km/h

REVERSE SPEED

3.5 MPH / 5.6 km/h

TRANSMISSION

Hydro-Gear ZT 3200

Cutting Deck

Deck Cutting Width

60″

Cutting Modes

Discharge/mulch/bagging

Deck Material

10-gauge AeroForce Max™ fabricated steel / double plate reinforced spindle mounts / 7-gauge side wraps /skid plate

Deck Attach/Removal

Removable

Deck Engagement (PTO)

Pull knob (electric)

Deck Construction

Fabricated

Spindle Construction

Sealed cast aluminum housing (Maintenance free)

Blade(s)

3

Deck Lift

Foot pedal with Dial Adjust

Cutting Height Range

1″ – 4.75″, 5″ transport

Anti-Scalping

2 ball, 1 nose

Deck Positions

16 positions and transport position

Chassis

Frame

1.5″ x 3″ tubular steel frame

Front Axle(s)

Fabricated steel

Turning Radius

0″

Front Tires

13″x6.5″-6″

Rear Tires

23″x12″-12″

Tire Tread

Turf Master/Multi Trac

ROPS

Included

Rear Tow Hitch

Included

Corrosion Protection

Triple Guard Corrosion Defense System™

Yokes

5/16” steel

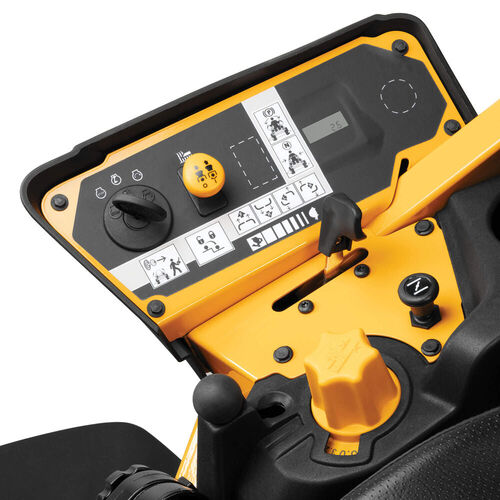

Controls

Brakes

Lap bar integrated

Steering Wheel Control

Lap Bars

Headlight(s)

2 – LED

Display

Hour meter

Comfort

Seat Type

24″ high back seat

Arm Rests

Included

Seat Suspension

Advanced polymer

Seat Adjustment

Lever

Floor Mats

Rubber

Steering Comfort

Quick adjustable (no tools) Soft Touch lab bars

Additional Specifications

Mulch Kit

Optional

Discharge Chute

Included

Cup Holder

Included

Operator Presence System

Included

Bagger

Optional

Specifications

Series

Ultima Series ZTX

Warranty

Warranty

4-year/500-hour warranty

Frame Warranty

Limited lifetime warranty

Deck Shell Warranty

Limited lifetime warranty
