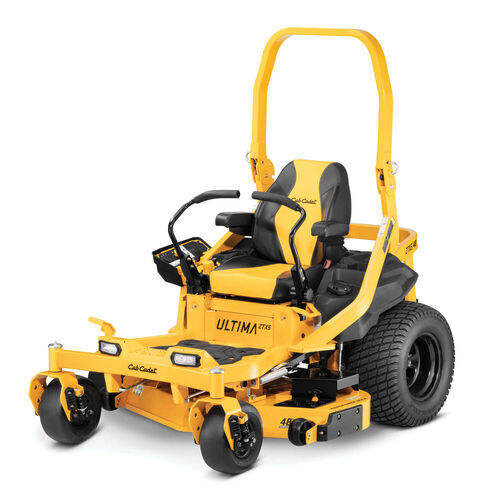

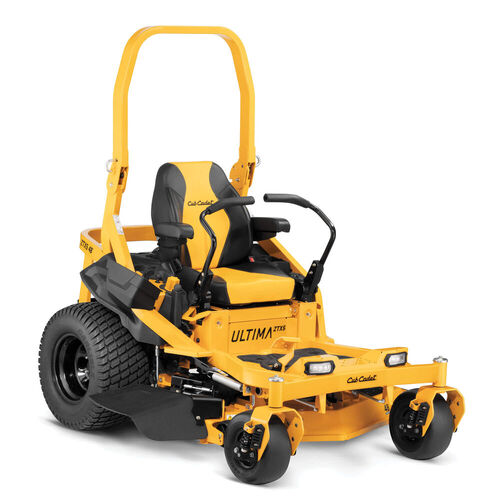

Cub Cadet Ultima ZTX 5 48

• Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance

• Equipped with a powerful 23 HP Kawasaki® FR691 V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.

• Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.

• Independent suspension caster wheels that deliver a smooth ride with less vibration.

• Four-year/500 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell give you peace-of-mind

• Ideal for 4-9 acres with slightly rolling hills and several obstacles

WATCH VIDEO

Engine

Engine Brand

Kawasaki®

Engine Model

FR Series

Engine Displacement

726cc

Engine Output

23 hp

Fuel Tank Capacity

5.5 gal.

Cylinders/Material

Twin

Engine Start

Key

Engine Oil Capacity

2.1 quarts

Lubrication

Fully pressurized

Battery

12V 230 cold crank amps

Charging System

15 Amp Regulated

Fuel Gauge

Fuel Gauge

Governor

Manual

Choke

Separate choke and throttle

Air Filter

Dual element

Oil Filter

Yes

Drive System

Transmission

Hydro-Gear ZT 3200

Forward Speed

8.5 MPH

Reverse Speed

3.5 mph

Rear Axle

1.125″

Transmission Housing

Cast aluminum

Transmission Type

Hydro-Gear ZT 3200

Cutting Deck

Deck Cutting Width

48″

Cutting Modes

Discharge/mulch/bagging

Deck Material

10-gauge AeroForce Max™ fabricated steel / double plate reinforced spindle mounts / 7-gauge side wraps /skid plate

Deck Attach/Removal

Removable

Deck Engagement (PTO)

Pull knob (electric)

Deck Construction

Fabricated

Spindle Construction

Sealed cast aluminum housing (Maintenance free)

Blade(s)

3

Deck Lift

Foot pedal with Dial Adjust

Cutting Height Range

1″ – 4.75″, 5″ transport

Anti-Scalping

2 ball, 1 nose

Deck Positions

16 positions and transport position

Chassis

Frame

1.5″ x 3″ tubular steel frame

Front Axle(s)

Fabricated steel

Turning Radius

0″

Front Tires

13″x6.5″-6″

Rear Tires

23″x12″-12″

Tire Tread

Turf Master/Multi Trac

ROPS

Included

Rear Tow Hitch

Included

Corrosion Protection

Triple Guard Corrosion Defense System™

Yokes

5/16” steel

Controls

Brakes

Lap bar integrated

Steering Wheel Control

Lap Bars

Headlight(s)

2 – LED

Display

Hour meter

Comfort

Seat Type

24″ high back seat

Arm Rests

Included

Seat Suspension

Advanced polymer

Seat Adjustment

Lever

Floor Mats

Rubber

Steering Comfort

Quick adjustable (no tools) Soft Touch lab bars

Additional Specifications

Mulch Kit

Optional

Discharge Chute

Included

Cup Holder

Included

Operator Presence System

Included

Bagger

Optional

Specifications

Series

Ultima Series ZTX

Warranty

Warranty

4-year/500-hour warranty

Frame Warranty

Limited lifetime warranty

Deck Shell Warranty

Limited lifetime warranty
