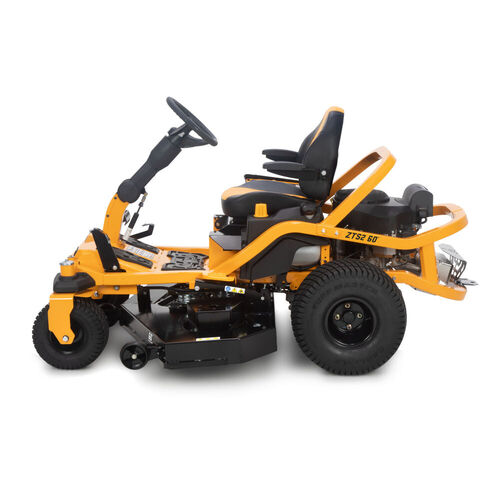

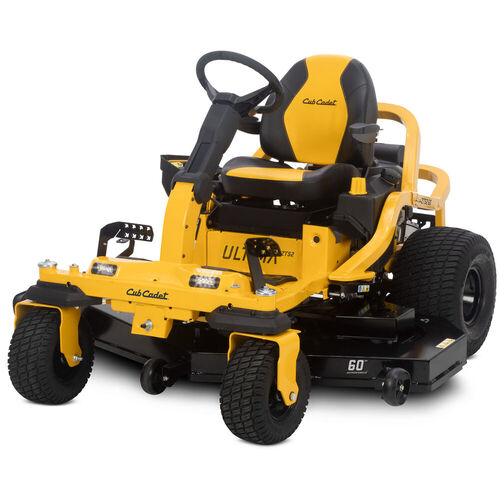

Cub Cadet Ultima ZTS 2 60

Cub Cadet Ultima ZTS 2 60

FEATURES:

• Synchro-Steer technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees

• Synchro-Steer technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 25 HP/725cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
• 60-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

SPECIFICATIONS:

Engine

Engine Brand

Kohler®

Engine Model

7000 Series PRO

Engine Model Number

KT740

Engine Displacement

725cc

Engine Output

25HP

Starter Type

Electric

Fuel Tank Capacity

3.5 gal. US (13.25 L)

Cylinders

Twin

Engine Start

Ignition Key

Engine Oil Capacity

2.0 qt. US (1.89 L)

Lubrication

Fully pressurized

Charging System

12 amp regulated

Fuel Gauge

No

Governor

Mechanical

Choke

Choke-a-matic

Air Filter

Dual element

Oil Filter

Yes

Fuel Delivery

Carburetor

Battery

Battery

210 CCA

Battery Type

AGM (Absorbent Glass Mat)

Battery Voltage

12V

Drive System

Transmission

Hydro-Gear ZT 2800

Forward Speed

7 MPH / 11.3 km/h

Reverse Speed

3.5 MPH / 5.6 km/h

Drive System

Hydrostatic

Cutting Deck

Deck Cutting Width

60 in

Deck Wash

No

Deck Material

11-gauge steel

Deck Engagement (PTO)

Electric

Deck Construction

Fabricated

Blade(s)

3

Deck Lift

Foot pedal with Dial Adjust

Cutting Height Range

1” – 4.5”

Anti-Scalping

3 gauge wheels

Deck Positions

15

Warranty

Warranty

3-year unlimited hours

Frame Warranty

Lifetime Limited

Deck Shell Warranty

Lifetime Limited

Commercial Warranty

No

Chassis

Frame

2” x 2” tubular steel

Turning Radius

0°

ROPS

No

Rear Tow Hitch

Yes

Corrosion Protection

Yes

Controls

Cruise Control

No

Brakes

Disc

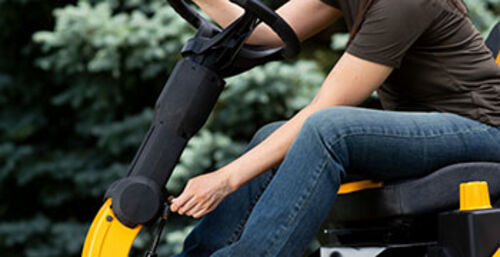

Steering Control

Steering Wheel

Comfort

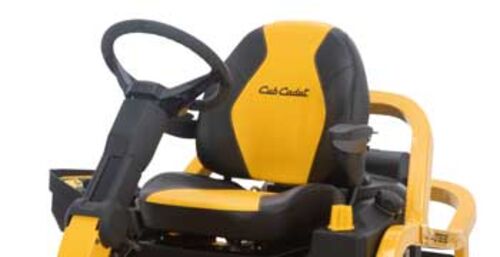

Seat Type

20″ high back

Armrests

Yes

Seat Adjustment

Lever

Wheels

Rear Tires

20”x 12”-8″

Front Tires

13″x 6.5″-6″

Tire Tread

Turf Master / Multi Trac

Additional Specifications

Hour Meter

Yes

Mulch Kit

Available separately

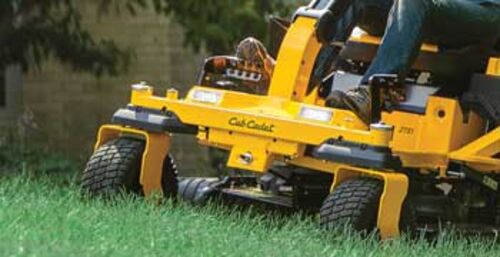

Headlight(s)

Dual-LED

Cup Holder

Yes

Operator Presence System

Yes

Parking Brake

Hand Lever

Model Number

17ASGGY5A10

Specifications

Series

Ultima Series™ ZTS

Disclaimer

Specifications Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
