CleanSkin 1/4″ (M) Quick Connect Spray Nozzle Tips (5 Pieces)
$0.00
Upgrade your cleaning game with CleanSkin’s 1/4″ Quick Connect Spray Nozzle Tips. With a set of five nozzles, experience a wider range of effective spray angles to maximize your cleaning power and increase efficiency. Choose from five nozzles, including a powerful jet and soft rinse option.Inclusions:Red: 0°Yellow: 15°Green: 25°White: 40°Black:…
Upgrade your cleaning game with CleanSkin’s 1/4″ Quick Connect Spray Nozzle Tips.
With a set of five nozzles, experience a wider range of effective spray angles to maximize your cleaning power and increase efficiency. Choose from five nozzles, including a powerful jet and soft rinse option.
Inclusions:

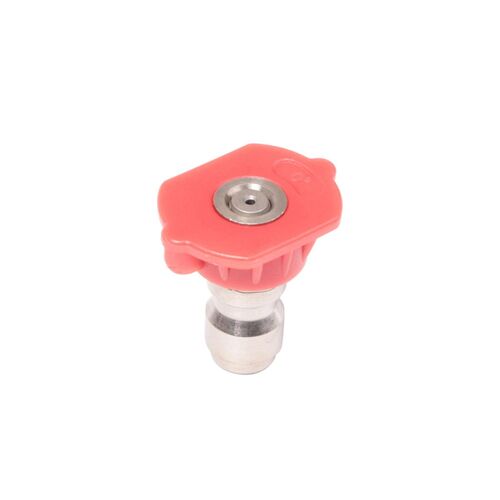

- Red: 0°

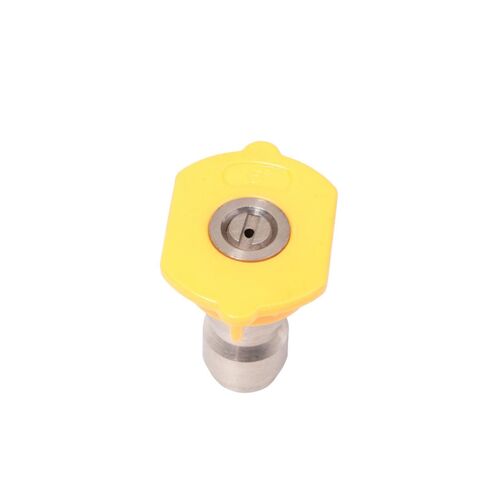

- Yellow: 15°

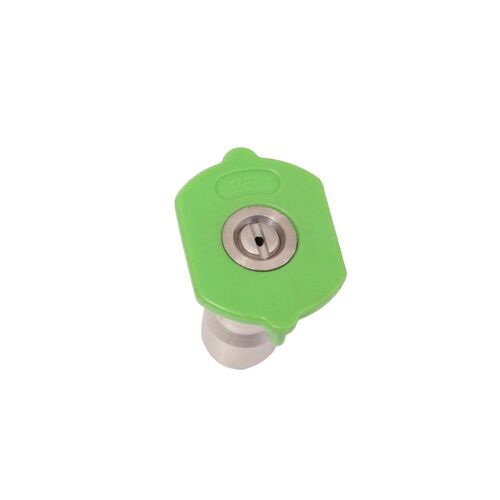

- Green: 25°

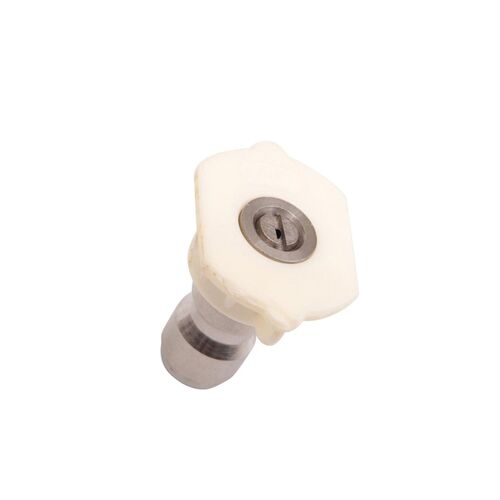

- White: 40°
- Black: low pressure
Features:
- Colour coded nozzles.
- 1/4″ inch Universal Quick Connection
- Orifice size 030 / 040 / 050
| Nozzle (Orifice Size) |
PSI (Pounds per Square Inch) | ||||||||||||||||
| 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 | 3250 | 3500 | 3750 | 4000 | 4500 | 5000 | GPM (Gallons per Minute) |
| 3 | 1.06 | 1.3 | 1.5 | 1.68 | 1.84 | 1.98 | 2.12 | 2.25 | 2.37 | 2.49 | 2.6 | 2.7 | 2.81 | 2.9 | 3 | 3.18 | 3.35 |
| 3.5 | 1.24 | 1.52 | 1.75 | 1.96 | 2.14 | 2.32 | 2.47 | 2.63 | 2.77 | 2.9 | 3.03 | 3.15 | 3.27 | 3.39 | 3.5 | 3.71 | 3.91 |
| 4 | 1.41 | 1.73 | 2 | 2.24 | 2.45 | 2.65 | 2.83 | 3 | 3.16 | 3.32 | 3.46 | 3.61 | 3.74 | 3.87 | 4 | 4.24 | 4.47 |
| 4.5 | 1.59 | 1.95 | 2.25 | 2.52 | 2.76 | 2.98 | 3.18 | 3.38 | 3.56 | 3.73 | 3.9 | 4.06 | 4.21 | 4.36 | 4.5 | 4.77 | 5.03 |
| 5 | 1.77 | 2.17 | 2.5 | 2.8 | 3.06 | 3.31 | 3.54 | 3.75 | 3.95 | 4.15 | 4.33 | 4.51 | 4.68 | 4.84 | 5 | 5.3 | 5.59 |
| 5.5 | 1.94 | 2.38 | 2.75 | 3.07 | 3.37 | 3.64 | 3.89 | 4.13 | 4.35 | 4.56 | 4.76 | 4.96 | 5.14 | 5.33 | 5.5 | 5.83 | 6.15 |
