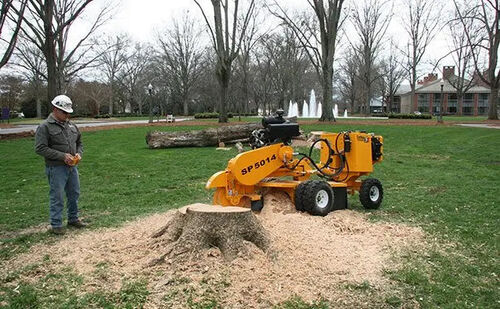

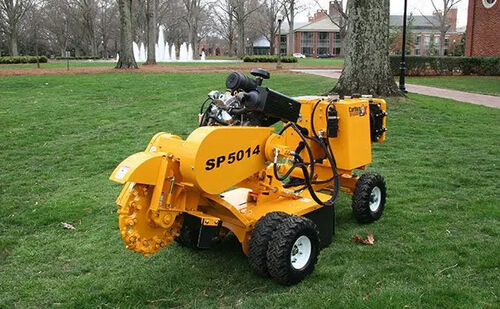

Carlton SP5014 (Wheeled Stump Grinder)

The SP5014 series is a four-wheeled self-propelled unit designed to deliver maximum cutting power in hard to get to areas. A unique dual speed ground system allows the SP5014 to travel faster than any other stump cutter on the market today.

The unit also boasts a 1 1/4-inch thick, 21-inch diameter cutting wheel, letting you grind faster and smoother than ever before. The SP5014 Stump Cutter features heavy-duty construction (1,650 pounds), hydraulic steering and four-wheel stance. This combination offers unmatched stability and maneuverability.

This compact machine has a width of 35 inches, allowing it to fit easily through standard backyard gates. The SP5014 incorporates many of the features found in larger J.P. Carlton models including a direct drive hydraulic pump, hardened bushings and shafts, counter balance valves on the lift, swing and hydraulic drive circuits.

The SP5014 series is available with a variety of engine options including: a 27-horsepower Kohler Engine and 35-horsepower Vanguard. With its wide range of features and dependable construction, the SP5014 is designed to maximize production and profits, while minimizing downtime.

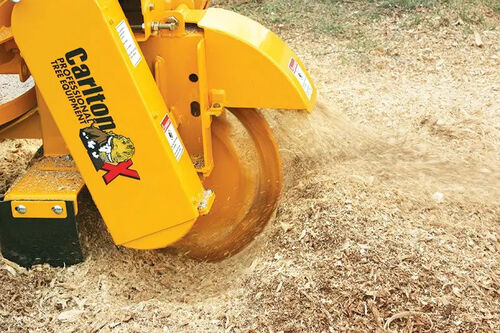

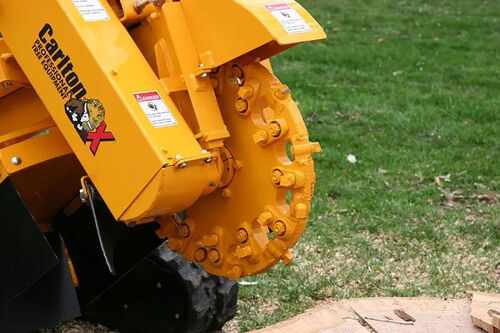

• Large Cutter Wheel, 21-inch diameter & 1 1/4-inch thick, provides maximum cutting power and flywheel momentum.
• Feather Touch Hydraulic Controls make the SP5014 easy to operate and provide optimum user control.
• Tapered Roller Bearings on jack shaft and cutter wheel provide long service life and reduced maintenance.
• Proprietary Dual Motor Ground Drive eliminates troublesome chains, axles and axle bearings.

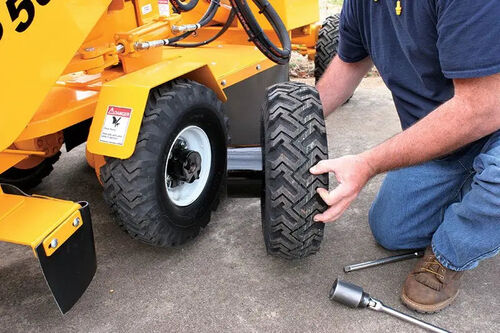

• Optional Dual Wheels are quickly removed.
• Available with 4 Wheel Drive – Allows the machine to traverse the nastiest of terrain.
• Available with a Hydraulic Back Fill Blade – Helps with the clean up.
