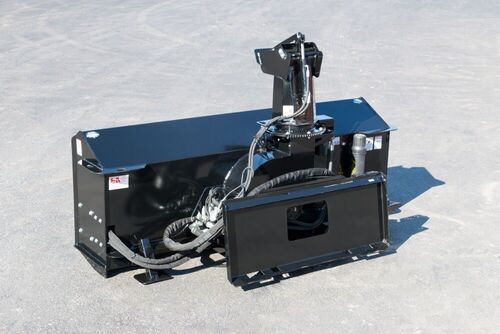

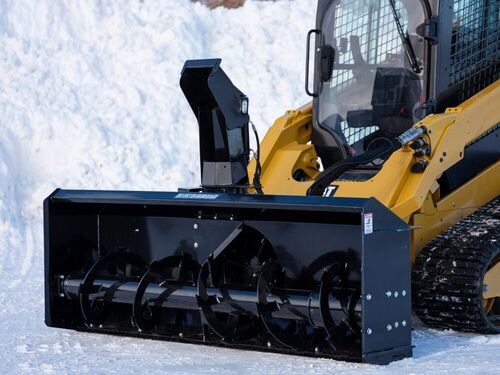

Blue Diamond® Extreme Duty Skid Steer Snow Blower
Original price was: $14,297.00.$399.99Current price is: $399.99.
The Blue Diamond® Extreme Duty Skid Steer Snow Blower is engineered for years of use. A high-pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer’s capacity.FEATURES…
The Blue Diamond® Extreme Duty Skid Steer Snow Blower is engineered for years of use.
A high-pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer’s capacity.
FEATURES INCLUDE:
- Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
- 4 blade fan, 22″ diameter, 6 1/2″ deep
- No shear pins; high pressure bypass relief system
- No chains; direct drive auger and fan
- 270◦ hydraulic rotary chute with 7” opening
- Hydraulic chute deflector
- Adjustable hardened steel skid shoes
- 7-gauge steel fan housing
- 10-gauge steel blower shell
- 1/4″ end plates
- High strength corner bracing
- Heavy duty polyurethane idler wheels
- Bolt-on grader cutting edge
EXTREME DUTY SNOW BLOWER MANUAL
SNOW BLOWER EXTREME DUTY SPEC SHEET
| PART NUMBER | MODEL | BEST FLOW | CUT WIDTH | CUT HEIGHT | OVERALL WIDTH | OVERALL HEIGHT | WEIGHT |
|---|---|---|---|---|---|---|---|
| 119098 | 68″ | 11-16 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 119099 | 68″ | 17-20 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 119100 | 68″ | 21-23 GPM | 69.7″ | 29.5″ | 73.5″ | 60.5″ | 915 lbs. |
| 119103 | 72″ | 17-20 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 119104 | 72″ | 21-23 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 119105 | 72″ | 24-25 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 119106 | 72″ | 26-29 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 119107 | 72″ | 30-40 GPM | 73.7″ | 29.5″ | 77.5″ | 60.5″ | 950 lbs. |
| 119109 | 84″ | 21-23 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1050 lbs. |
| 119110 | 84″ | 24-25 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1050 lbs. |
| 119111 | 84″ | 26-29 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1,050 lbs. |
| 119112 | 84″ | 30-40 GPM | 85.7″ | 29.5″ | 89.5″ | 60.5″ | 1,050 lbs. |
