BAR Wall Mounted Manual Hose Reel (*)

Description:

The BAR Wall Mounted Manual Hose Reel is designed to provide a sturdy and efficient way to mount and retract hoses. It is constructed from durable materials, making it a suitable option for both residential or commercial applications.

Features:

• Locking pin
• Light weight
• 5000psi
• Built-in swivel
• Up to 30m hose capacity of 3/8″ Hose

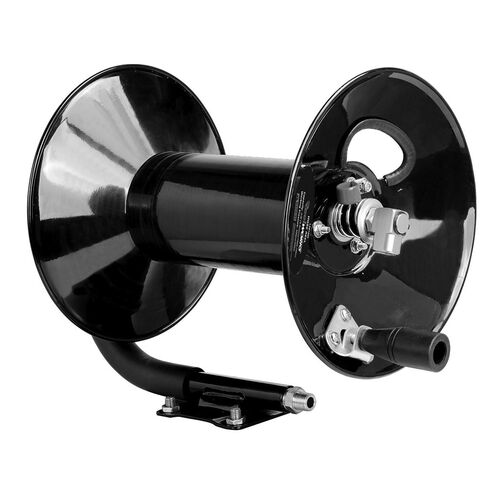

Option 1 – 15m x 3/8″ Hose:

This reel comes with a 3/8″ BSP male fitting on the inlet (which is connected to your water mains / tap) and a 3/8″ BSP female fitting on the outlet (which is connected to your pressure washer hose) and will require additional adaptors to suit depending on the type of hose mounted.

• Inlet: 3/8″ BSP (M) – No jumper / whip hose included
• Outlet: 3/8″ BSP (F)

Add the adaptors below to suit a Kranzle or Active pressure washer:

1. M22 (F) to 3/8″ BSP (F) – CS036: Connects the inlet of the jumper hose to the pressure washer outlet.
2. 3/8″ BSP (M) to M22 (M) – CS016: Connects the outlet of the reel to the pressure hose.

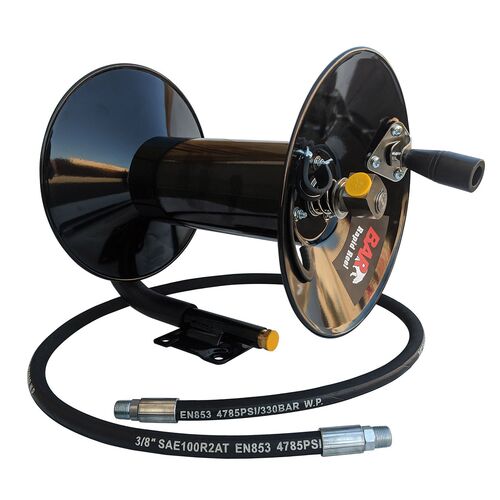

Option 2 – 22.8m x 3/8″ Hose

This reel comes with a 3/8″ BSP female fitting on both the inlet (which is connected to your water mains / tap) and outlet (which is connected to your pressure washer hose). A 1 meter jumper hose with 3/8″ BSP male fittings is also included.

• Inlet: 3/8″ BSP (M) – At end of jumper / whip hose
• Outlet: 3/8″ BSP (F)

Add the adaptors below to suit a Kranzle or Active pressure washer:

1. M22 (F) to 3/8″ BSP (F) – CS036: Connects the inlet of the jumper hose to the pressure washer outlet.
2. 3/8″ BSP (M) to M22 (M) – CS016: Connects the outlet of the reel to the pressure hose.

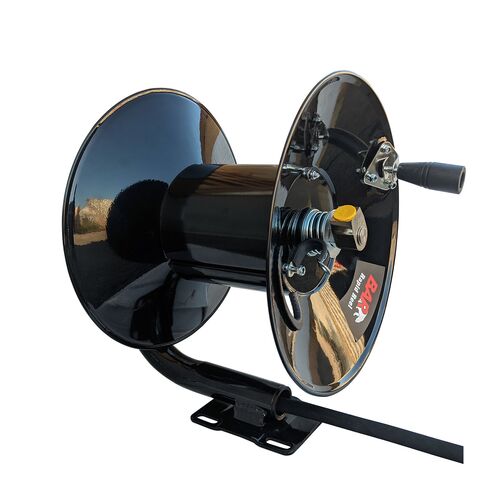

Option 3 – 30m x 3/8″ Hose

This reel comes with a 3/8″ BSP female fitting on both the inlet (which is connected to your water mains / tap) and outlet (which is connected to your pressure washer hose). A 1.5 meter jumper hose with 3/8″ BSP male fittings is also included.

• Inlet: 3/8″ BSP (M) – At end of jumper / whip hose
• Outlet: 3/8″ BSP (F)

Add the adaptors below to suit a Kranzle or Active pressure washer:

1. M22 (F) to 3/8″ BSP (F) – CS036: Connects the inlet of the jumper hose to the pressure washer outlet.
2. 3/8″ BSP (M) to M22 (M) – CS016: Connects the outlet of the reel to the pressure hose.
