Any Airless to AAA Upgrade Kit with MAMBA® Gun

Any Airless to AAA Upgrade Kit with MAMBA® Gun

Manufacturer: Total Finishing Supplies

Part Number: MambaKit

Description: Upgrade any airless system to an air-assisted airless system with a MAMBA® gun!

Kit Includes:

• MAMBA® Gun with choice of Tip (Mamba-XXX)
• Air Compressor (CAT-4620AC)
• 3/16″ TFS Fluid Hose with 1/4″ Female Stainless Steel Fittings (TF-PA13-25FFSS)
• 1/4″ TFS Air Hose with 1/4″ Female Fittings (TFS1511-4634-25)

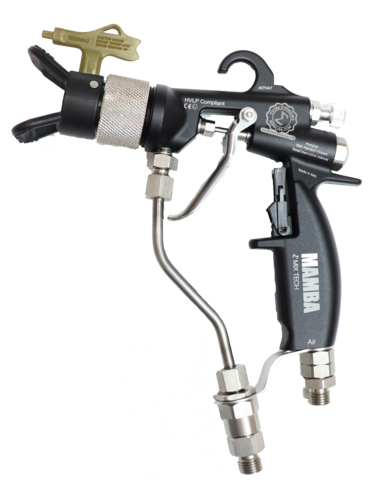

The MAMBA® Mix Tech 200 bar (2900 PSI) manual spray gun delivers exceptional performance, value, and finish quality. With a high transfer efficiency, the MAMBA® Mix Tech competes with other much higher-priced Graco® G40 RAC™ and G15 RAC™ spray guns.

• MAMBA® is manufactured by an ISO9000 facility
• Material  savings & environmental protection
• HVLP compliant
• Unsurpassed atomization and quality of spraying at almost half the price
• Lightweight and ergonomic design for outstanding performance
• Comparable to Graco® G40 RAC™ and G15 RAC™ along with the TriTech Fine Finish Reversible Tips

The California Air Tools 4620AC is our ultimate portable compressor!  It runs at 7.0 CFM at 40 PSI.  Designed to be one of the quietest 2.0 hp air compressors in the industry, the 4620AC only has 70 decibels of sound.

• 7.0 CFM at 40 PSI
• 120 volts
• Continuous duty cycle

Air Compressor Specifications:

Fluid Inlet: NPSM 1/4″
Compressed Air Connection: NPT 1/4″
Max Inlet Pressure: 8.62 BAR / 116 psi
Weight: 64.0 lb (29.0 kg)
Max Sound Level:  70dB

Total Finishing Supplies offers two types of 3/16” high-pressure airless paint sprayer hose. Both have great flexibility and can typically be seen applying spray coatings such as stains, lacquers, and oil-based paints. Our 25-foot high-pressure airless paint hose rated at 3,500 PSI is one of the most popular hoses equipped on an air-assisted airless paint sprayer.

Literature

• Operating Manual
• Brochure
• Cut Sheet
• Tip Chart

Accessory and Parts List

• TriTech Contractor Tips
• TriTech Ultra-Finish Tips
• Reversible Tip Guard and Retainer/Air Cap
• Non-OEM Tip Sieve Support

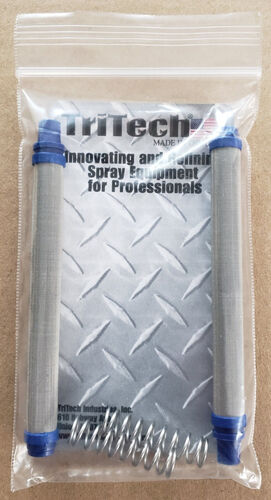

• Non-OEM Tip Sieves (85-200 mesh)
• 1/4″ M x 1/4″ F Swivel
• 25′ High-Pressure Fluid Line (select fittings when ordering)
• 25′ Air Line
• Replacement Filters (select mesh size)

Replacement Part List

• Reversible Tip Guard and Retainer
• Reverse Tip, Ultra Finish
• Seal for Reversible Tip Guard, 5 pk
• 2. Wedge
• 3. Fan Regulation Set
• 4. Pressure Wedge
• 5. Fluid Needle Gasket
• 6. Fluid Needle Screw
• 7. Air Valve Complete
• 8. Needle Set
• 9. Air Valve Spring
• 10. Needle Spring
• 11A. Back Cap
• 12. Air Inlet 1/4″
• 13. Pin
• 14. Safety Lock
• 15. Trigger Pin
• 16. Trigger
• 17. Sealing Gasket
• 18. Gun Head

NO DISCOUNT CODES may be applied to this item

NOTES:

Not made by Graco®

Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Graco Inc. and is not one of their authorized distributors. Aftermarket non-oem replacement parts comparable to Graco® brand equipment are not manufactured or warrantied by Graco Inc. or any of its affiliates.

Click here to view other products, parts, & accessories!

Warranty:

1 year MFG warranty from MFG defect.



Comparable to: 262929 24C857 249238 288465
