120cm SLASHER H/Duty with Shear Bolt + PTO Shaft Part No.: FID4-60 Code 1

120cm SLASHER H/Duty with Safety Shear Bolt+ PTO Shaft  Part No.: FID4-60 Code  1

Code No.: 1

Part No.: FID4-60



Shipping weight & size :   250 kgs & 135*145*50 cm



Description :

FID4-60

SLASHER HEAVY DUTY 120CM with Safety Shear Pin

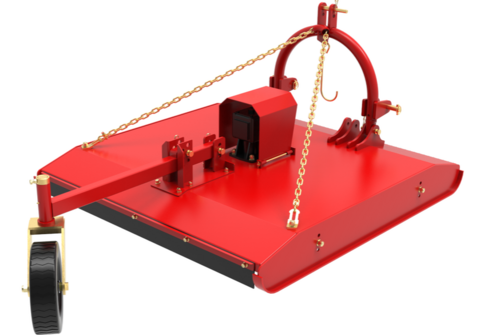

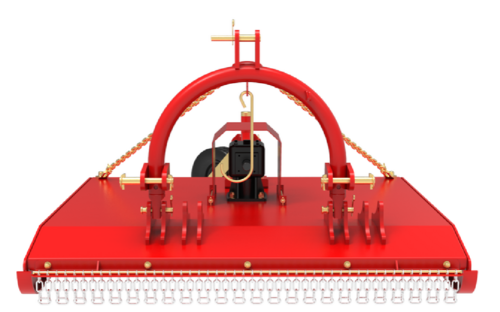

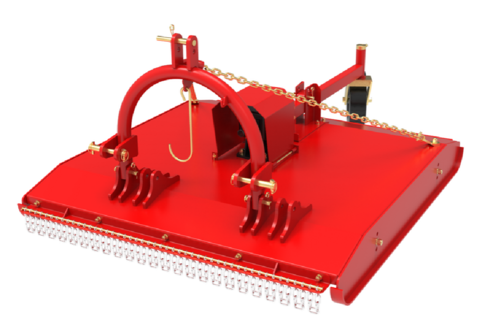

The Millers Falls FIDS4 heavy duty slasher is a 120cm slasher that is specifically designed for use with medium and larger tractors. It is perfect for cutting grass and undergrowth on your property. The slasher features a reinforced deck and a floating A Frame with rear discharge and adjustable skids.

The FIDS4-60 is a heavy-duty tractor implement that is fully featured to give you the best possible performance. Its over-engineered design and construction, this reliable attachment is built for Australian conditions and ready for hard work. Ideal for farm, commercial and domestic use. Great for acreages, farms, park lands, road side maintenance and many more grass slashing applications.

The slasher is built to be durable and can withstand rugged conditions and heavy workloads. It is constructed from premium materials, ensuring long-lasting performance. It is also compatible with a wide range of tractors, offering convenience and easy attachment for various farming operations.

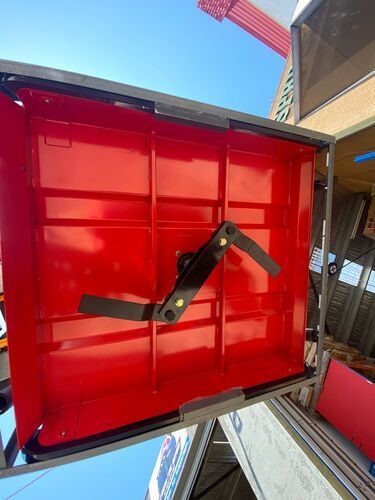

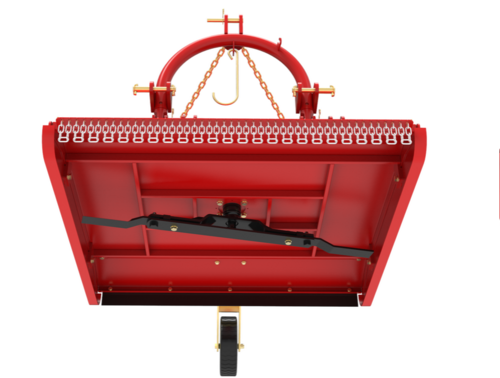

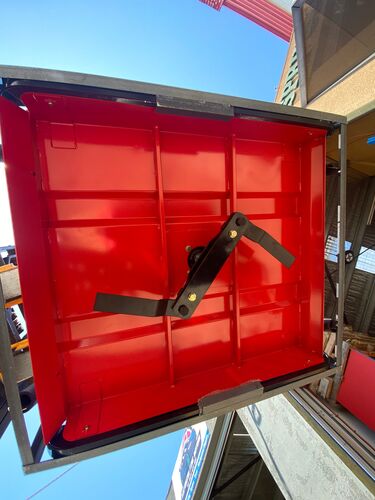

The slasher has a heavy-duty 6mm deck with an additional 6mm of plating under the gear box. The 60hp gear box has been tested over many years and is proven to hold up under the harshest conditions. The slasher also features step-down blades to reduce the risk of the cutter bar hitting objects, the deck also has reinforcement on the underside helping to keep the deck straight thereby reducing water pooling and prolonging its life.

Additionally, the slasher has top link chains that connect to the rear allowing the deck to float over undulating uneven terrain giving a better cut and reducing blade wear.  It also has an adjustable cut height of 30-105mm.

Includes a single rear trailing wheel to prevent slasher from scalping and reduced weight load on tractor linkages.

For safety the slasher has a rear flap to prevent stones or solid object from being thrown backwards. The front of the slasher has a special design feature allowing grass to enter but preventing objects from being discharged forwards.  The gearbox is supplied with a safety cover over the PTO shaft. The FIDS4 slasher meets the Australian new Safety Standards for Slashers.

The slasher is perfect for a variety of applications, such as slashing a variety of grasses, small trees and light scrub, clearing road sides and creating firebreaks. It is particularly well-suited for use in open grassy areas.

The Millers Falls FIDS4-60 heavy duty slasher is a versatile and durable attachment that is perfect for maintaining your property and tackling tough vegetation management tasks. Whether you need to cut grass, clear undergrowth or clear road sides, this slasher is designed to efficiently get the job done.

Note: Requires addition of 85W140 gearbox oil prior to operation

Product Features:

• Single Rear Support Wheel
• High Grade Steel Rotor Bar and Heat-Treated Cutting Blades
• Step down blades reduce the risk of cutter bar hitting objects
• Solid Steel Deck
• Cutting Height Adjustable Skids 30-105mm
• Max PTO Speed 540RPM
• Recommended for tractors 25-50hp
• Deck made with quality steel with strengthened underbody frame.
• High quality 60 hp lower noise level cast iron gearbox.
• Complete with PTO Shaft with Shear Pin Protection
• Powder coated finish for long life easy maintenance.
• Suits 3-point tractor linkage (Cat 1).



Specifications:

Model: FIDS4-60

Cutting Width: 1180 mm

Number of Cutting Blades: 2

Working Efficiency: 3500-9500m2/h

Cutting Height-with adjustable skids: 30-105mm

Recommended Tractor HP: 25-50 hp

PTO Speed: 540 rpm

PTO Spline: 6 x 8 x 1000mm

Gearbox:  60 HP

Deck Material thickness: 6mm

Side Skid Material Thickness: 8mm

Assembled Dimensions: 1320 x 1220 x 980 mm

Shipping Dimensions: 1325 x 1435 x 470 mm

Weight: 245 kg



N.B.  Colour may vary
